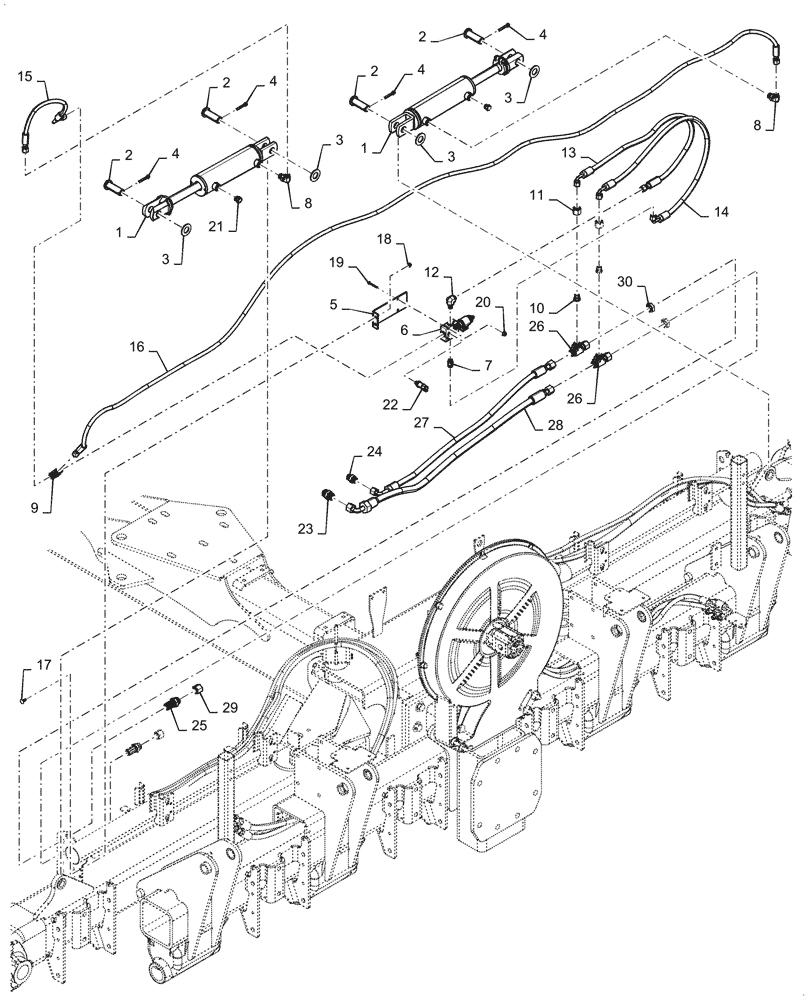

Запчасти Case IH 2150 (88.100.35[02]) - HYDRAULIC WEIGHT TRANSFER ATTACHMENT 12/16 ROW (88) - ACCESSORIES

1

47525652

HYDRAULIC CYLINDER

3000 PSI

2шт.

2

87023161

HEADED PIN,1" x 3"

4шт.

3

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

4

87041

COTTER PIN,1/4" x 1 3/4"

4шт.

5

47811408

BRACKET

Weight Management Red

1шт.

6

47666427

VALVE BODY

Hydraulic

1шт.

7

277961A1

VALVE

To Port 3

1шт.

8

84390792

90 ELBOW

3/8"

2шт.

9

87305436

HYD CONNECTOR

To Port 1

1шт.

10

87610706

REDUCER,1"-14 UNF-2A - 11/16-16 UNF-2A

5/8"x3/8"

2шт.

11

86624028

TUBE NUT,1"-14 ORFS

2шт.

12

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

To Port 2

1шт.

13

47745767

HOSE

10 mm ID x 1020 mm To Port 2

1шт.

14

47867183

HOSE

10 mm ID x 1090 mm To Port 3

1шт.

15

47745769

HOSE

6 mm ID x 560 mm

1шт.

16

47865688

HOSE

6 mm ID x 4250 mm To Right Wing Cylinder

1шт.

17

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

18

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

19

15212821

BOLT,Hex, M6 x 45mm, Cl 8.8, Full Thd

2шт.

20

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

21

47773907

HYD CONNECTOR

Breather

2шт.

22

47773391

SENSOR

To Port 4 Pressure

1шт.

23

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

1шт.

24

87610720

HYD CONNECTOR,7/8" - 14 ORB x 13/16" - 16 ORFS

1шт.

25

47728105

UNION TEE

Hex

2шт.

26

86624133

TEE,1"-14 ORFS x 1"-14 Sw Run

2шт.

27

47744772

HOSE

13mm ID x 1330 mm To Port PBY

1шт.

28

47744774

HOSE

16 mm ID x 1380 mm To Port TBY

2шт.

29

47818474

CAP

5/8"

2шт.

30

87381294

LOCK NUT

5/8"

2шт.
