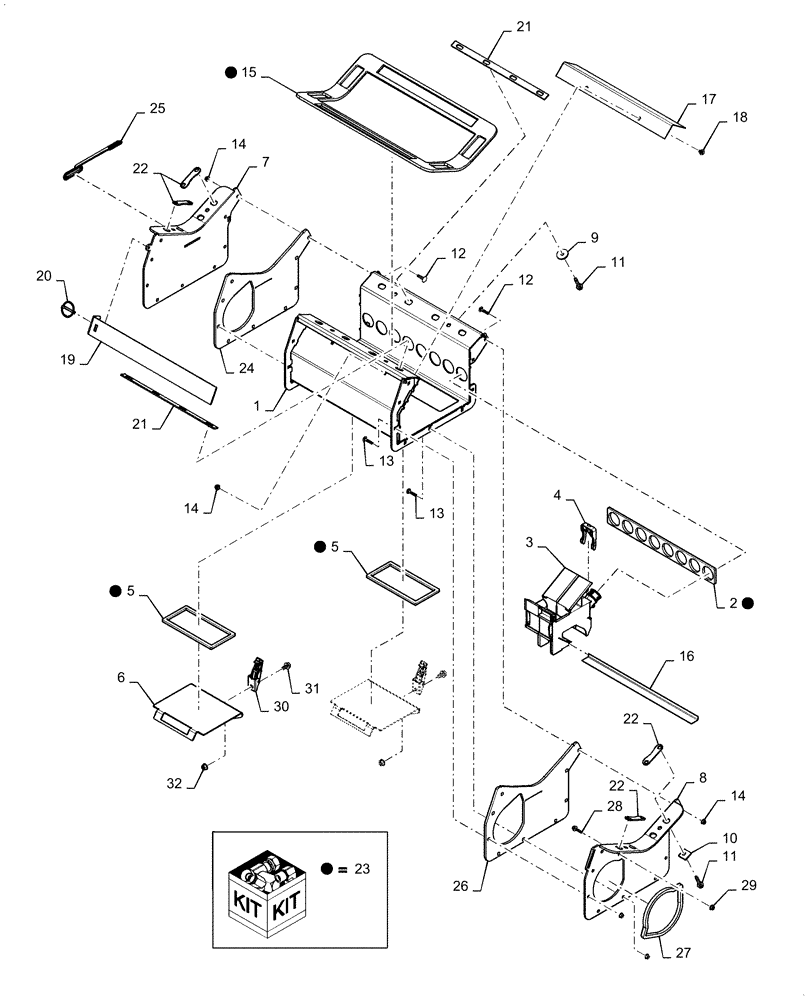

Запчасти Case IH 2150 (79.100.AD[02]) - RIGHT 8 PORT DISTRIBUTOR (79) - PLANTING

1

84489713

DISTRIBUTOR

8 Port Red

1шт.

2

NSS

NOT SOLD SEPARAT

Gasket Segment 8 Port Incl in 23

1шт.

3

84580208

MANIFOLD

Inductor

4шт.

4

84544326

CLIP

Inductor

8шт.

5

NSS

NOT SOLD SEPARAT

Gasket Seed Door Incl in 23

1шт.

6

84581148

PLATE

Short Door Red

1шт.

7

84486988

WALL

Left No Air Red

1шт.

8

84486987

WALL

Right Air Red

1шт.

9

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

8шт.

10

47382493

MOUNTING PLATE

Bolt

8шт.

11

47806985

BOLT

M8 x 1.25"

16шт.

12

47906989

BOLT

m6 x 25 mm

16шт.

13

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

14

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

20шт.

15

NSS

NOT SOLD SEPARAT

Gasket Main 8 Port Incl 23

1шт.

16

84489729

SCREEN

8 Port Lower

1шт.

17

84543877

SCREEN

8 Port Lower

1шт.

18

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

19

84427933

GRATE

Seed Shut Off

1шт.

20

87459046

LINCH PIN

3/16"

1шт.

21

47497881

SUPPORT

8 Port Red

2шт.

22

47497878

SUPPORT

End Place Spacer Red

4шт.

23

84493589

GASKET KIT

8 Port

1шт.

24

84540713

GASKET

Left End Cap

1шт.

25

47374749

PLUG

Seed Gate

1шт.

26

84540714

GASKET

Right End Cap

1шт.

27

84540715

GASKET

Air Intake

1шт.

28

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

1шт.

29

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

30

47525127

LATCH

Latch Double

1шт.

31

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

32

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.
