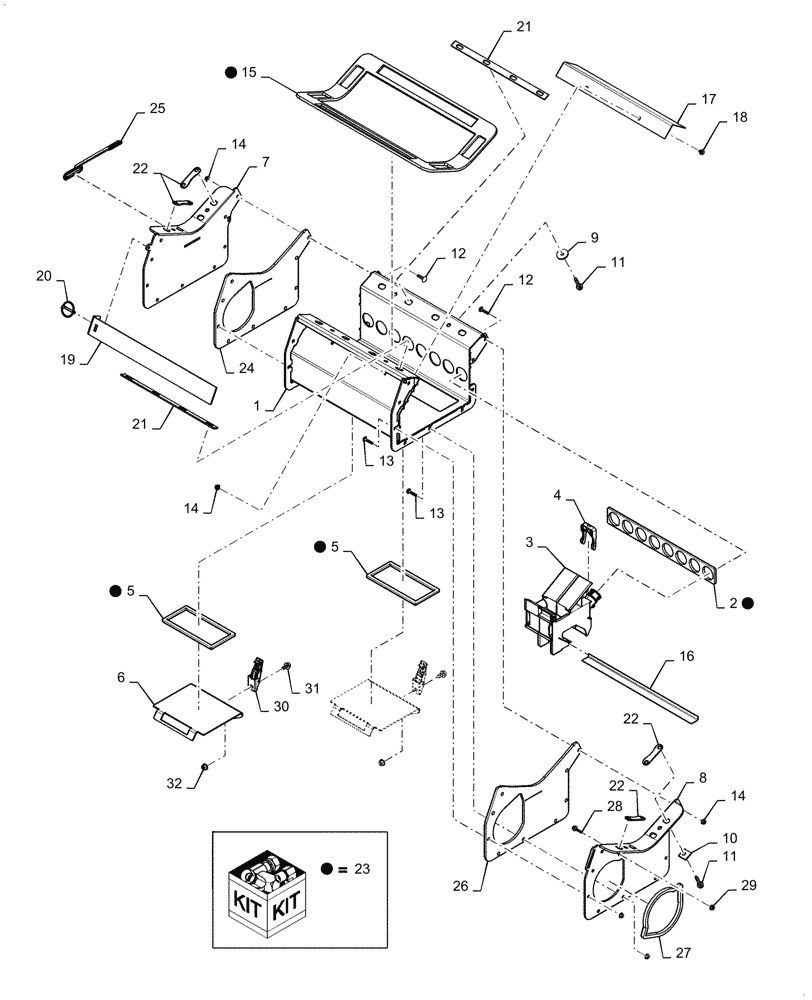

Запчасти Case IH 2150 (79.100.AD[01]) - LEFT 8 PORT DISTRIBUTOR (79) - PLANTING

1

84489713

DISTRIBUTOR

8 Port Red

1шт.

2

NSS

NOT SOLD SEPARAT

Gasket Segment Incl in 23

1шт.

3

84580208

MANIFOLD

Inductor Segment

4шт.

4

84544326

CLIP

Inductor Segment

8шт.

5

NSS

NOT SOLD SEPARAT

Gasket Seed Door Incl in 23

1шт.

6

84581148

PLATE

Door Short Red

1шт.

7

84489720

WALL

Left AirRed

1шт.

8

84489721

WALL

Right Air Red

1шт.

9

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

8шт.

10

47382493

MOUNTING PLATE

Bolt

8шт.

11

47806985

BOLT

m8 x1.25"

16шт.

12

47906989

BOLT

m6 x 25 mm

16шт.

13

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

14

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

20шт.

15

NSS

NOT SOLD SEPARAT

Gasket Main 8 Port Incl in 23

1шт.

16

84489729

SCREEN

8 Port Lower

1шт.

17

84543877

SCREEN

8 Port Upper

1шт.

18

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

19

84427933

GRATE

Seed Shut Off Red

1шт.

20

87459046

LINCH PIN

3/16"

1шт.

21

47497881

SUPPORT

8 Port Red

2шт.

22

47497878

SUPPORT

End Place Spacer

4шт.

23

84493589

GASKET KIT

8 Port

1шт.

24

84540713

GASKET

End Cap Left

1шт.

25

84540715

GASKET

Air Intake

1шт.

26

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

1шт.

27

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

28

84540714

GASKET

End Cap Right

1шт.

29

47374749

PLUG

Seed Gate

1шт.

30

47525127

LATCH

Double Lock

1шт.

31

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

32

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.
