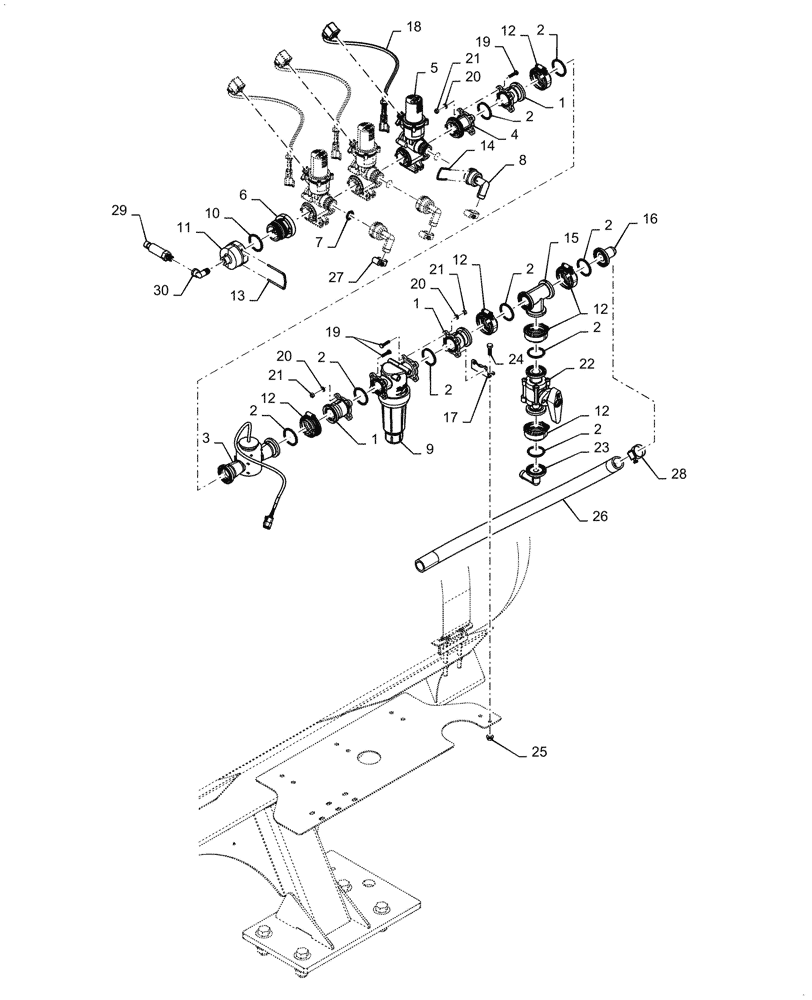

Запчасти Case IH 2150 (63.110.AB[09]) - LIQUID FERTILIZER MANIFOLD VALVES (63) - CHEMICAL APPLICATORS

1

47714572

HYD CONNECTOR

4 Bolt To Flange

3шт.

2

51405058

O-RING

1.375 x 1.625"

9шт.

3

47714564

VALVE BODY

22 GPM

1шт.

4

47753745

HYD CONNECTOR

To Flange

1шт.

5

47709766

VALVE BODY

Section Control

3шт.

6

47753804

HYD CONNECTOR

Section Valve

1шт.

7

47753812

GASKET

O-Ring

3шт.

8

51402581

FITTING

Tee Jet 90 Deg

3шт.

9

51403495

FILTER STRAINER

Mesh

1шт.

10

47753814

GASKET

O-Ring

1шт.

11

47752432

HYD CONNECTOR

Gauge Port

1шт.

12

51403056

CLAMP

Tee Jet 500

6шт.

13

47753817

CLIP

Manifold

1шт.

14

47753818

CLIP

Manifold

3шт.

15

47780608

HYD CONNECTOR

Tee Liquid Fertilizer

1шт.

16

47780622

HYD CONNECTOR

Elbow 90 Deg

1шт.

17

51405153

MOUNT

Tee Jet

1шт.

18

47822425

WIRE HARNESS

Jumper

3шт.

19

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

12шт.

20

86639317

WASHER,6.4mm ID x 13mm OD x 2mm Thk

12шт.

21

9706755

NUT,M6, Cl 8

12шт.

22

51403586

VALVE

1" Ball

1шт.

23

47940558

HOSE

Fitting 90 Deg

1шт.

24

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

25

86619801

FLANGE NUT,M8 x 1.25, Cl 8

8шт.

26

134329C3

HOSE

Bulk Cut To Length 1600 mm

1шт.

27

87016721

HOSE CLAMP,17.5mm - 31.7mm

3шт.

28

86643166

HOSE CLAMP,#16, 20.6mm - 38.1mm, Type F Worm Gear, W/ Liner

2шт.

29

84239343

SENSOR

Pressure 100 PSI

1шт.

30

47766691

ELBOW,1/4" 90 Degree Poly Street Elbow

90 Deg

1шт.
