Запчасти Case IH 2150 (63.110.AB[08]) - LIQUID FERTILZER HOSE COMPLETING (63) - CHEMICAL APPLICATORS

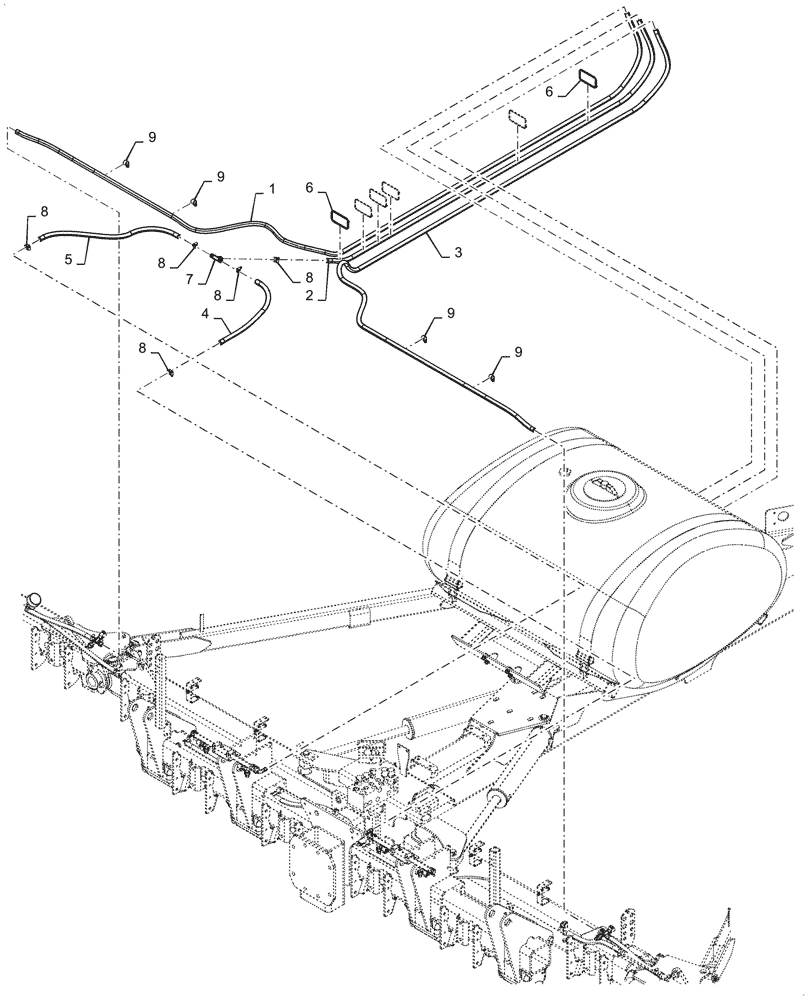

Схема запчастей Case IH 2150 - (63.110.AB[08]) - LIQUID FERTILZER HOSE COMPLETING (63) - CHEMICAL APPLICATORS
6
8
2
8
9
8
5
6
9
4
7
9
3
8
9
1
8

Артикул

Название

Примечание

Количество

1

241923A1

HOSE

Bulk 3/4" ID 100 Foot Cut To Length 5588 mm

1шт.

2

241923A1

HOSE

Bulk 3/4" ID 100 Foot Cut To Length 3866 mm

1шт.

3

241923A1

HOSE

Bulk 3/4" ID 100 Foot Cut To Length 5588 mm

1шт.

4

241923A1

HOSE

Bulk 3/4" ID 100 Foot Cut To Length 559 mm

1шт.

5

241923A1

HOSE

Bulk 3/4" ID 100 Foot Cut To Length 660 mm

1шт.

6

87502038

CABLE TIE

Small

6шт.

7

87669667

FITTING,3/4" Hose Barb Tee

1шт.

8

87016721

HOSE CLAMP,17.5mm - 31.7mm

5шт.

9

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

Выбрано товаров: 9
