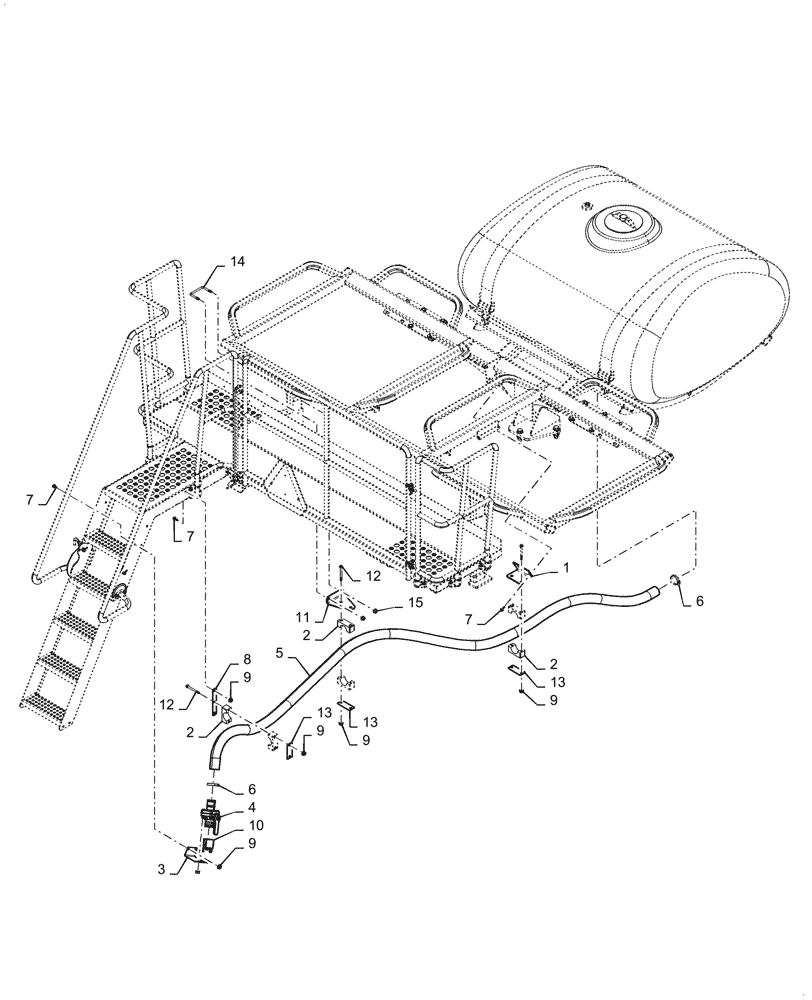

Запчасти Case IH 2150 (63.110.AB[06]) - LIQUID FERTILIZER QUICK FILL (63) - CHEMICAL APPLICATORS

1

47795731

SUPPORT

Quick Fill Hose Red

1шт.

2

2928341

HOSE CLIP

Hose

3шт.

3

84419010

BRACKET

Ball Valve Mount

1шт.

4

87503192

SHUT-OFF VALVE,2" Valve

2" Stubby

1шт.

5

86988667

HOSE,2.00" ID x 100.00'

Cut To Length

1шт.

6

86637706

HOSE CLAMP,39.6mm - 63.5mm

2шт.

7

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

5шт.

8

47917911

SUPPORT

Quick Fill Red

1шт.

9

86619802

FLANGE NUT,M10 x 1.5, Cl 8

11шт.

10

405799A1

DUST CAP,2" Cap w/Short Arms

Poly 2"

1шт.

11

47917899

SUPPORT

Quick Fill Red

1шт.

12

86624958

BOLT,Hex, M10 x 110mm, Cl 8.8

6шт.

13

47808661

BRACKET

Delta Force Red

3шт.

14

47817199

U-BOLT

M12 x 4"

1шт.

15

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.
