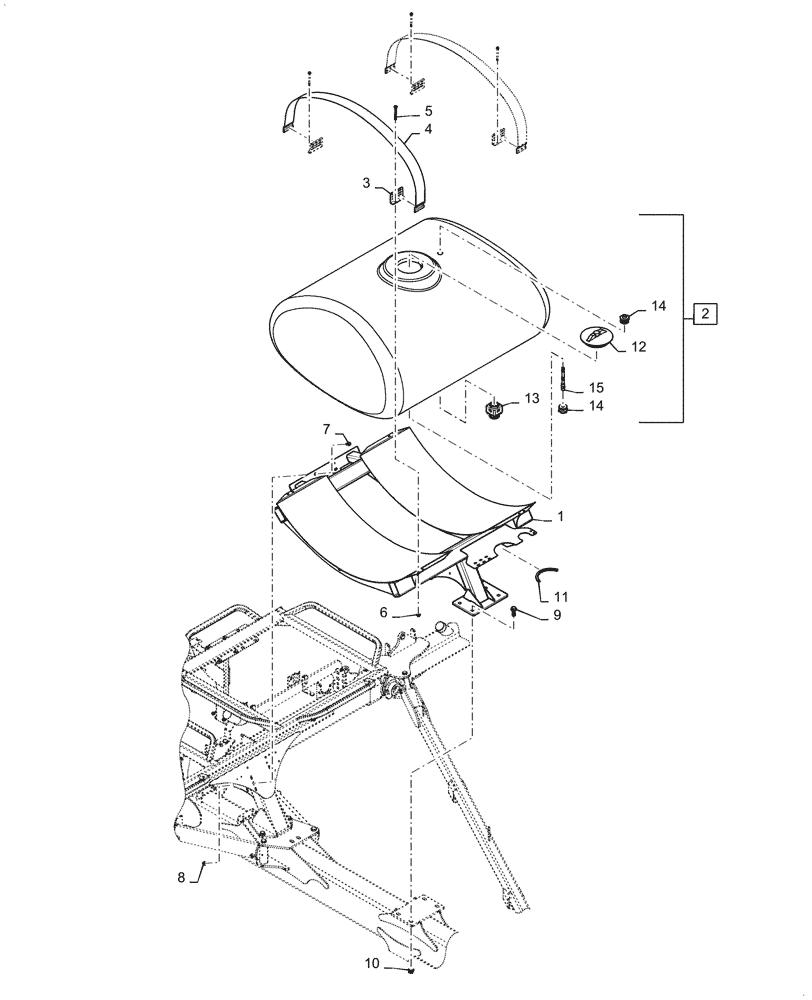

Запчасти Case IH 2150 (63.110.AB[05]) - LIQUID FERTILIZER TANK 400 GALLON (63) - CHEMICAL APPLICATORS

1

47731401

FRAME

Tank Painted Red

1шт.

2

47783254

TANK

400 Gallon Incl 12 - 15

1шт.

3

87647049

PLATE

Strap Anchor

4шт.

4

87660683

STRAP

Tank

2шт.

5

87681205

BOLT,Hex, M10 X 120, Class 10.9

8шт.

6

86619802

FLANGE NUT,M10 x 1.5, Cl 8

8шт.

7

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

4шт.

8

9804279

FLANGE NUT,Hex, M12, Cl 8

4шт.

9

86511853

BOLT,Hex Flg, M20 x 60, 8.8

4шт.

10

86512496

FLANGE NUT,M20 x 2.5, Flg, Cl 8

4шт.

11

87062C1

GASKET

Trim Black

1шт.

12

87676614

LID

Tank

1шт.

13

405789A1

FITTING

Bottom Drain

1шт.

14

406148A1

FITTING

Fitting 3/4"

2шт.

15

86985279

AGITATOR

In Tank

1шт.
