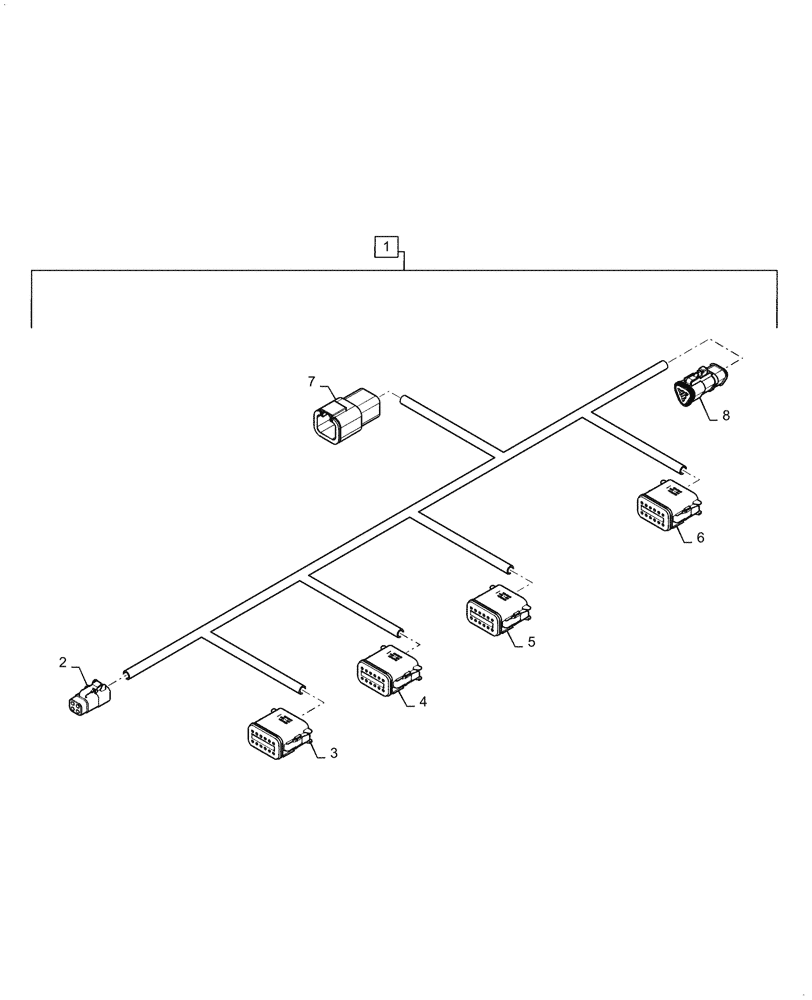

Запчасти Case IH 2150 (55.015.AB[06]) - WIRE HARNESS RIGHT CONTROL BUS (55) - ELECTRICAL SYSTEMS

1

47745715

WIRE HARNESS

Control Bus Right Incl 2-8

1шт.

2

87696138

ELEC CONNECTOR

Center Bus

1шт.

2

87697866

TERMINAL,Female, Nickel, 0.50 - 1.00mm

Female Nickel

4шт.

2

84807680

PLUG

Sealing

4шт.

2

87696149

ELEC CONNECTOR

Lock

1шт.

3

87696075

ELEC CONNECTOR

Row 9

1шт.

3

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

12шт.

3

84068583

PLUG,12 - 16 Ga, White

12шт.

3

87695651

LOCKING TAB,Wedge Lock

Lock

1шт.

4

87696075

ELEC CONNECTOR

Row 10

1шт.

4

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

12шт.

4

84068583

PLUG,12 - 16 Ga, White

12шт.

4

87695651

LOCKING TAB,Wedge Lock

Lock

1шт.

5

87696075

ELEC CONNECTOR

Row 11

1шт.

5

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

12шт.

5

84068583

PLUG,12 - 16 Ga, White

12шт.

5

87695651

LOCKING TAB,Wedge Lock

Lock

1шт.

6

87696075

ELEC CONNECTOR

Row 12

1шт.

6

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

12шт.

6

84068583

PLUG,12 - 16 Ga, White

12шт.

6

87695651

LOCKING TAB,Wedge Lock

Lock

1шт.

7

87421341

MULTIPOLE CONNECTOR,Male, 4 Pole

Right Bus Power

1шт.

7

87696144

ELEC. TERMINAL PIN,Male, 2 - 3.5 mm2

4шт.

7

84068583

PLUG,12 - 16 Ga, White

4шт.

7

87707798

WEDGE

Lock

1шт.

8

84058093

SOCKET

Can 1 Terminal

1шт.

8

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

3шт.

8

84068583

PLUG,12 - 16 Ga, White

3шт.

8

84068194

LEVER

Lock

1шт.
