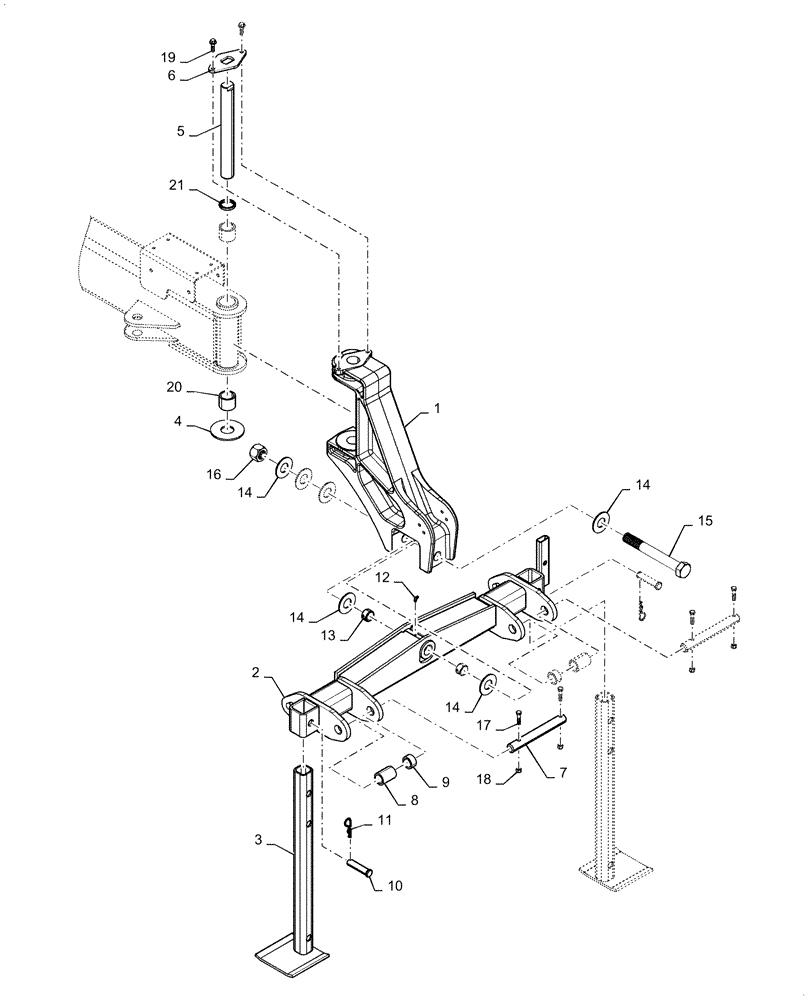

Запчасти Case IH 2150 (37.100.AF[01]) - HITCH 2 POINT, 12 / 16 ROW (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47702907

KNUCKLE

2 Point 12-16 Row Painted Red

1шт.

2

84484096

TUBE

With Hitch Cross

1шт.

3

87549566

STAND

Planter

2шт.

4

87634870

WEAR PAD

52.31 mm ID x 133 mm OD

1шт.

5

47915699

PIN

2 Pt 12 Row

1шт.

6

47914281

PLATE

Pin Lock Red

1шт.

7

87566119

PIN

Lower

2шт.

8

599801R1

SPACER

Hitch Pin

2шт.

9

284219A1

SPACER

Hitch Pin

2шт.

10

87403990

HEADED PIN

1.00" x 4.28"

2шт.

11

1978738C1

HAIR PIN COTTER

Hitch

2шт.

12

323713

LUBE NIPPLE,M6 x 1mm

1шт.

13

22093

BUSHING,1-1/2" ID x 1-3/4" OD x 1" Thk

2шт.

14

87371

WASHER,1.62" ID x 3.5" OD x 0.18" Thk

6шт.

15

87358257

BOLT

1.50 x 12.00"

1шт.

16

87020431

LOCK NUT

1-1/2"

1шт.

17

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

4шт.

18

100038

NUT,M12 x 1.75, Cl 8

4шт.

19

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

2шт.

20

47901411

BUSHING

2.5OD X 2.0ID

2шт.

21

47912621

RING

Sealing Wiper

1шт.
