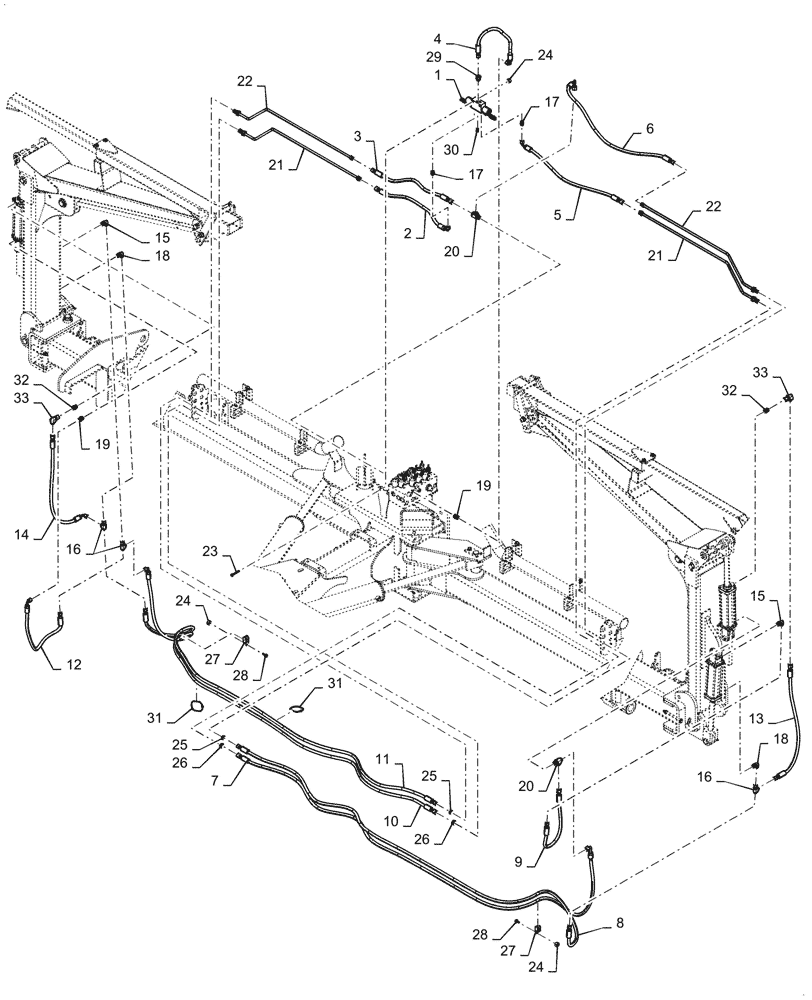

Запчасти Case IH 2150 (35.746.AC[02]) - FRONT FOLD MARKER HYDRAULICS, 12 ROW (35) - HYDRAULIC SYSTEMS

1

87463248

VALVE

Marker Block

1шт.

2

47732247

HOSE

10 mm ID x 800 mm Long To Left Marker Cylinder Base End

1шт.

3

47860630

HOSE

10 mm ID x 700 mm Long To Right Marker Cylinder End

1шт.

4

47732240

HOSE

10 mm ID x 575 mm Long Port V To Lift And Fold Valve

1шт.

5

47732251

HOSE

10 mm ID x 890 mm Long To Right Marker Cylinder Base End

1шт.

6

47732252

HOSE

10 mm ID x 1100 mm Long To Left Marker Cylinder Rod End

1шт.

7

47816390

HYDRAULIC HOSE

10 mm ID x 3940 mm Long To Marker Cylinder Base End

1шт.

8

47816401

HYDRAULIC HOSE

10 mm ID x 3600 mm Long To Marker Cylinder Rod End

1шт.

9

47816446

HYDRAULIC HOSE

10 mm ID x 660 mm Long Cylinder To Tee

1шт.

10

47816537

HYDRAULIC HOSE

10 mm ID x 3650 mm Long To Marker Valve

1шт.

11

47816539

HYDRAULIC HOSE

10 mm ID x 3390 mm Long To Lift And Fold Valve Port R

1шт.

12

47816540

HYDRAULIC HOSE

10 mm ID x 790 mm Long Cylinder To Tee

1шт.

13

47931264

HYDRAULIC HOSE

10 mm ID 990 mm Long Tee To Elbow

1шт.

14

47931265

HYDRAULIC HOSE

10 mm ID x 1250 mm Long From Cylinder Rod End To Elbow

1шт.

15

84390792

90 ELBOW

90 Deg 3/8"

2шт.

16

47726686

UNION TEE

Swivel Run 3/8" Hex

3шт.

17

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

18

47779354

ELBOW

Orifice 8 x 6

2шт.

19

87672176

HYD CONNECTOR

3/8" x 1/2"

2шт.

20

84533155

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

2шт.

21

47727726

TUBE

Innerwing Lift Marker

2шт.

22

47761754

TUBE

Innerwing 13 mm OD

2шт.

23

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

24

8475948

NUT,M10 x 1.5, Cl 8

4шт.

25

87381287

LOCK NUT

3/8" Tube

2шт.

26

87381289

BHD LOCK NUT,13/16"-16, 12mm OD

1/2" Tube

2шт.

27

47774635

CLAMP

20.63 mm M10

2шт.

28

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

29

47779351

ELBOW

10 x 6.17 mm One Way

1шт.

30

9625178

PLUG,9/16" - 18 ORB

1шт.

31

87502038

CABLE TIE

Small

4шт.

32

84536883

FITTING

3/4"

2шт.

33

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

2шт.
