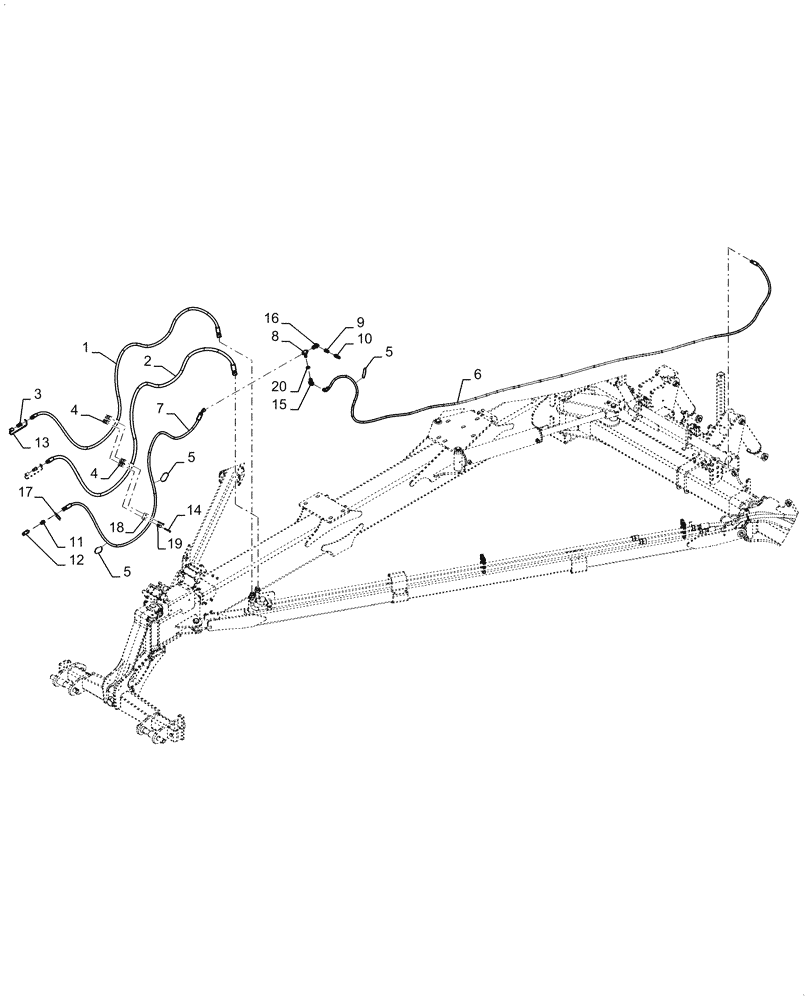

Запчасти Case IH 2150 (35.744.AF[01]) - ALTERNATOR HYDRAULICS, 12 / 16 ROW, 2 POINT HITCH (35) - HYDRAULIC SYSTEMS

1

47732814

HOSE

16 mm ID x 3900 mm Long

1шт.

2

47732815

HOSE

19 mm ID x 3900 Long

1шт.

3

86592080

QUICK MALE COUPLING

To Tractor

2шт.

4

87482623

CLAMP

Large

4шт.

5

87502038

CABLE TIE

Small

3шт.

6

47872417

HYDRAULIC HOSE

10 mm ID x 6050 mm Long

1шт.

7

47872436

HYDRAULIC HOSE

13 mm ID x 3420 mm Long

1шт.

8

86639082

TEE,13/16"-16 ORFS, Blkhd Br

1шт.

9

47745911

ADAPTER

Swivel 13/16-16 ORB 9/16-18

1шт.

10

84389953

PRESSURE SWITCH

5 Bar

1шт.

11

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

1шт.

12

385358A1

QUICK MALE COUPLING,3/8"

1шт.

13

333722A1

CAP

Coupler Green

2шт.

14

47919371

BOLT

M10 x 80 8.8 ZND

2шт.

15

84431325

TEE,13/16"-16 ORFS x 13/16"-16 Fem Sw Br

1шт.

16

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

1шт.

17

47432848

DECAL

Case Drain

1шт.

18

47895228

COVER

Clamp

1шт.

19

87530629

CLAMP,20.6mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

20

87381289

BHD LOCK NUT,13/16"-16, 12mm OD

1/2" Tube

1шт.
