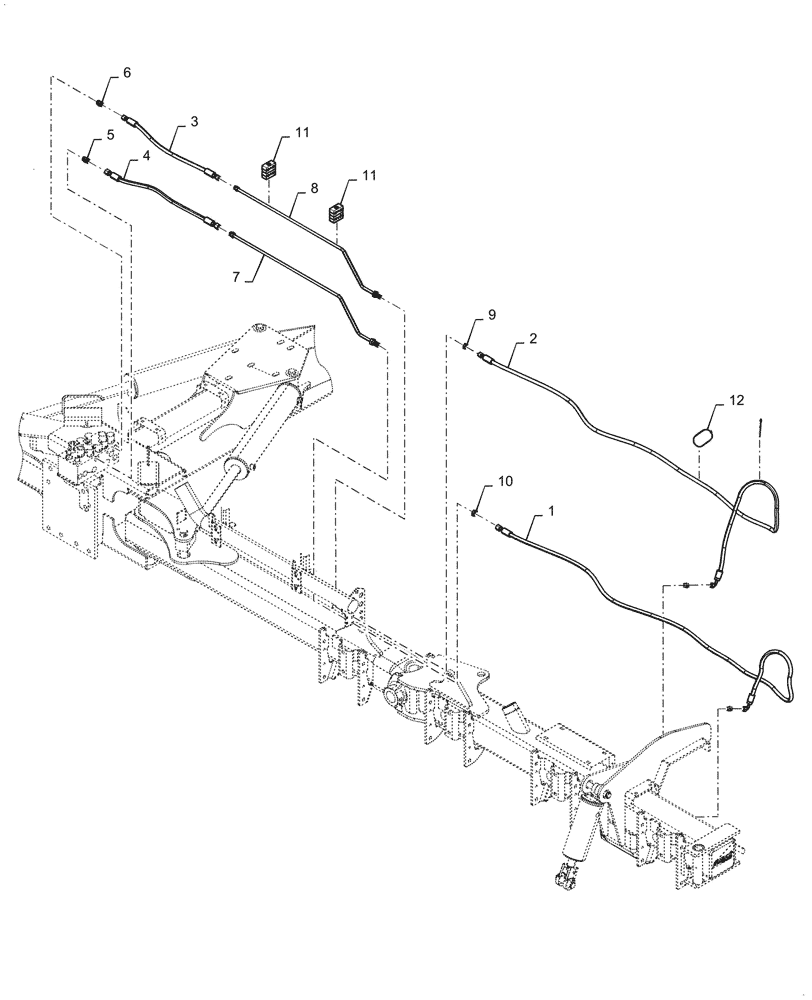

Запчасти Case IH 2150 (35.100.BI[07]) - RIGHT WING WHEEL HYDRAULICS, 12 ROW (35) - HYDRAULIC SYSTEMS

1

47956668

HYDRAULIC HOSE

10 mm ID x 3040 mm

1шт.

2

47956669

HYDRAULIC HOSE

10 mm ID x 3280 mm

1шт.

3

47731317

HOSE

10 mm ID x 700 mm

1шт.

4

47731311

HOSE

10 mm ID x 770 mm

1шт.

5

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

1шт.

6

87672176

HYD CONNECTOR

3шт.

7

47727726

TUBE

Inner Wing Lift Marker

1шт.

8

47761754

TUBE

Inner Wing 13 mm OD

1шт.

9

87381287

LOCK NUT

3/8" Tube

1шт.

10

87381289

BHD LOCK NUT,13/16"-16, 12mm OD

1/2"

1шт.

11

87000149

CLAMP

12.7 x 12.7

4шт.

12

87502038

CABLE TIE

Small

2шт.
