(90.108.AC[04]) - 12 ROW FRONT FOLD 2PT HITCH DECALS

Запчасти Case IH 2150 (90.108.AC[04]) - 12 ROW FRONT FOLD 2PT HITCH DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

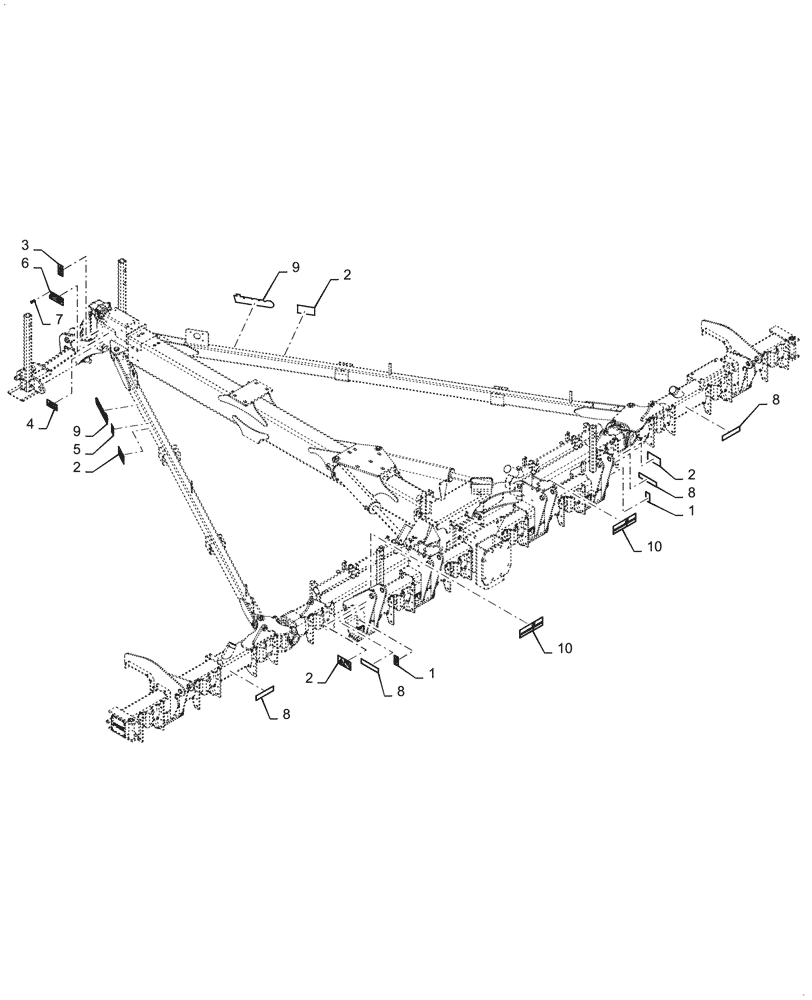

Схема запчастей Case IH 2150 - (90.108.AC[04]) - 12 ROW FRONT FOLD 2PT HITCH DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
4
1
10
5
10
8
2
3
9
2
6
9
7
2
8
8
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47433201

DECAL

Warning Crush Hazard

2шт.

2

47433192

DECAL

Warning Pinch Hazard

4шт.

3

47392435

DECAL

Tractor Speed Control

1шт.

4

47358801

CAUTION DECAL

ISO

1шт.

5

47433182

DECAL

Chemical Hazard

1шт.

6

NS

NOT SERVICED

ID Plate Special Order Only

1шт.

7

84316428

RIVET

ID Plate

4шт.

8

86547782

REFLECTOR,YELLOW

4шт.

9

84395168

DECAL

CIH Logo

2шт.

10

47623656

DECAL

Agronomic

2шт.

Выбрано товаров: 10
