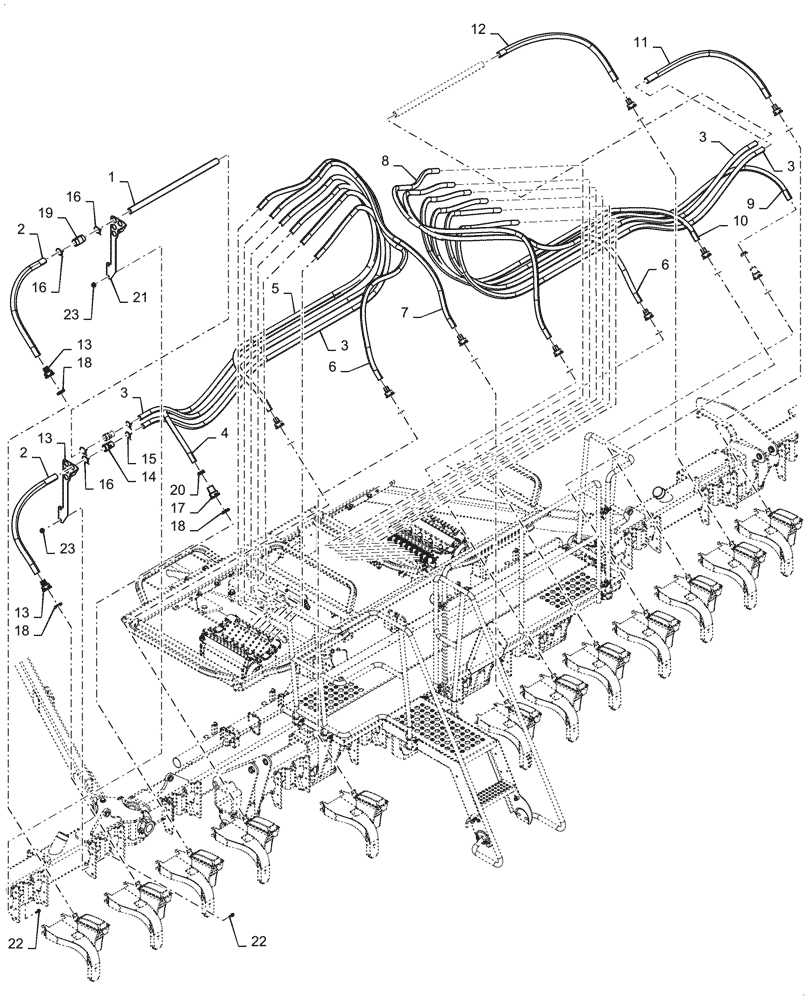

Запчасти Case IH 2150 (79.105.AD[10]) - BULK FILL DELIVERY 12 ROW 30" SPACING (79) - PLANTING

1

84523866

PIPE

Seed 1.265" ID x 860 mm

1шт.

2

87483977

HOSE

Bulk 1.25" ID x 950 mm Cut To Length 950 mm

2шт.

3

87483976

HOSE

Bulk 1" ID Cut to Length 4030 mm

4шт.

4

87483976

HOSE

Bulk 1" ID Cut To Length 4170 mm

1шт.

5

87483976

HOSE

Bulk 1" ID Cut To Length 3560 mm

1шт.

6

87483976

HOSE

Bulk 1" ID Cut To Length 3200 mm

2шт.

7

87483976

HOSE

Bulk 1" ID Cut To Length 2700 mm

1шт.

8

87483976

HOSE

Bulk 1" ID Cut To Length 2900 mm

1шт.

9

87483976

HOSE

Bulk 1" ID Cut To Length 4080 mm

1шт.

10

87483976

HOSE

Bulk 1" ID Cut To Length 3460 mm

1шт.

11

87483977

HOSE

Bulk 1.25" ID x 950 mm Cut To Length 1090 mm

1шт.

12

87483977

HOSE

Bulk 1.25" ID x 950 mm Cut To Length 1040 mm

1шт.

13

84329267

COUPLING

1.25" Seed Hose

2шт.

14

47762231

COUPLING

Seed Hose 1.25" x 1.5" OD

1шт.

15

47761466

CLAMP

1-1/2"

1шт.

16

47761519

CLAMP

1-3/4"

1шт.

17

84396735

QUICK MALE COUPLING

1"

1шт.

18

84372879

O-RING

Hose Coupling

3шт.

19

47762230

COUPLING

1.25"

1шт.

20

47591098

BOOT

Hose Coupling

1шт.

21

47798290

SUPPORT

Seed Tube Red

2шт.

22

9804262

BOLT,M10 x 39.2mm, Cl 8.8

4шт.

23

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.
