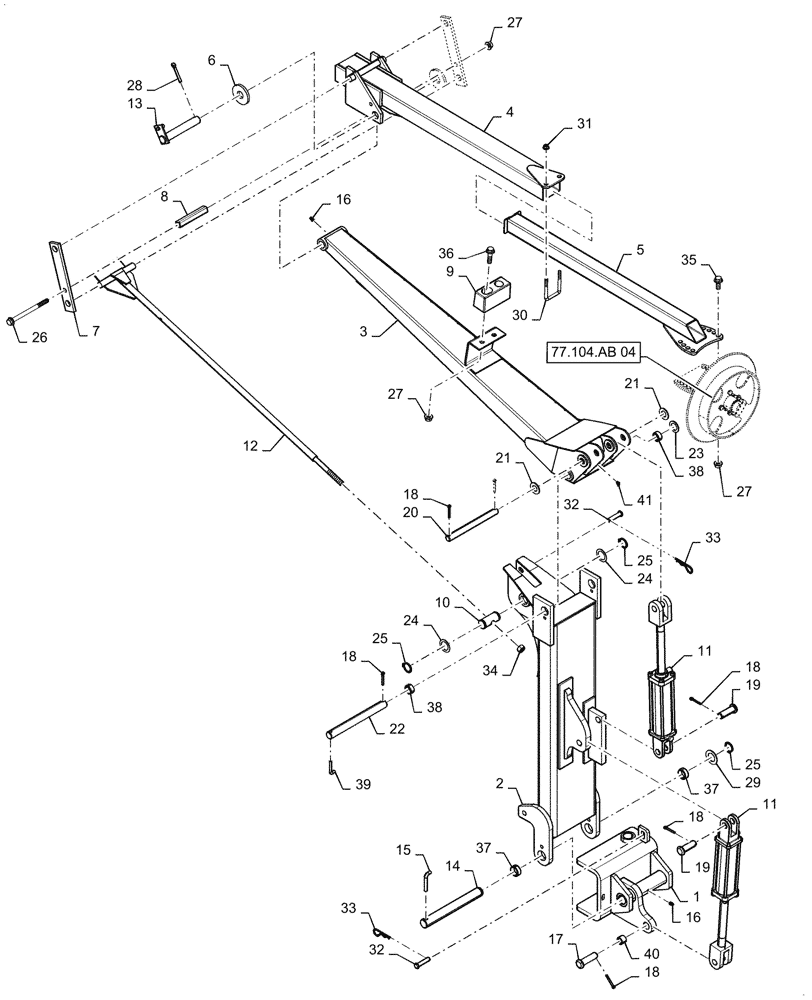

Запчасти Case IH 2150 (77.104.AB[05]) - MARKER 30 FOOT (77) - SEEDING/PLANTING

1

87650715

FRAME

Right Inner Marker Red

1шт.

1

87650731

FRAME

Left Inner Marker Red

1шт.

2

47761322

ARM

Marker Red

1шт.

3

47761325

ARM

Marker Middle 12 Row Red

1шт.

4

427815A1

ARM ASSY.

30 Foot Marker

1шт.

5

87417015

ARM

12/23 Marker Adjusting

1шт.

6

406320A1

WASHER

Link Pivot

2шт.

7

47761770

BAR

Link Red

2шт.

8

427803A1

TUBE

Spacer

1шт.

9

437020A1

BUMPER

Pad Marker

1шт.

10

406319A1

TRUNNION

Marker

1шт.

11

86991779

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

2шт.

12

47761329

ROD

30 Root Link Red

1шт.

13

402227A1

SPECIAL PIN

Lock

1шт.

14

47761426

PIN

Marker Fold

1шт.

15

408033A1

PIN

J Lock

1шт.

16

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

17

439-51656

HEADED PIN,1" x 3 1/2", G5

1шт.

18

300423

COTTER PIN,M6.3 x 50

6шт.

19

87023161

HEADED PIN,1" x 3"

2шт.

20

441257A1

PIN,25.4mm OD x 265mm L

1шт.

21

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

22

406321A1

PIVOT PIN

Arm Pivot

1шт.

23

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

1шт.

24

86632585

WASHER,1.53" ID x 2.25" OD x 0.06" Thk

2шт.

25

86632531

SNAP RING,#150, Ext

3шт.

26

87028053

BOLT,Hex Flg, M16 x 210, 10.9

1шт.

27

87016581

FLANGE NUT,M16 x 2, CI 10

5шт.

28

300602

COTTER PIN

10 x 63 mm

1шт.

29

86632586

WASHER,1.53" ID x 2.5" OD x 0.11" Thk

1шт.

30

47781065

U-BOLT

M12

1шт.

31

86619803

FLANGE NUT

1.75"

2шт.

32

86624085

HEADED PIN,15.88mm OD x 69.85mm L

2шт.

33

1978738C1

HAIR PIN COTTER

2шт.

34

86632685

LOCK NUT

3/4"

1шт.

35

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

2шт.

36

87675533

BOLT,M16 x 75.4mm, Cl 10.9

2шт.

37

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

2шт.

38

1268053C1

BUSHING,38.1mm ID x 44.45mm OD x 19.05mm L

2шт.

39

408034A1

PIN

J Lock

1шт.

40

64601C1

BUSHING

Tension

1шт.

41

80721

LUBE NIPPLE,1/4"-28 x 45 Degree

1шт.
