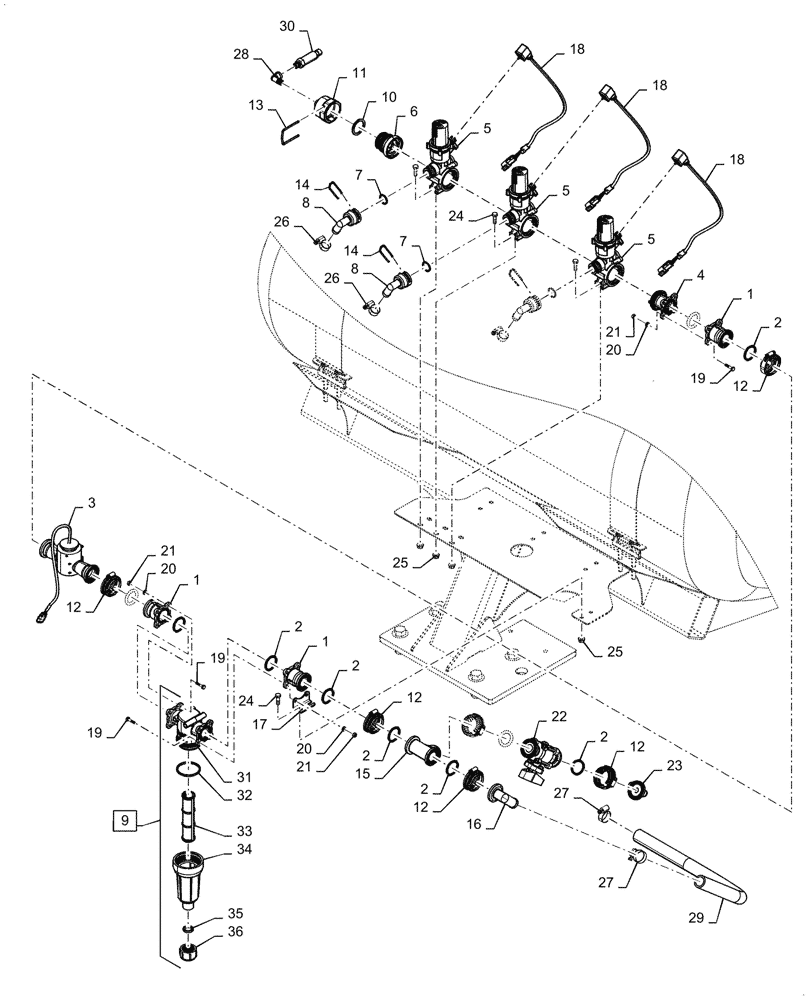

Запчасти Case IH 2150 (63.110.AB[09]) - LIQUID FERTILIZER MANIFOLD VALVES (63) - CHEMICAL APPLICATORS

1

47714572

HYD CONNECTOR

4 Bolt to Flange

3шт.

2

51405058

O-RING

9шт.

3

47714564

VALVE BODY

Flow, 0.4 - 22 GPM

1шт.

4

47753745

HYD CONNECTOR

4 Bolt to Flange, Section Control

1шт.

5

47709766

VALVE BODY

Section Control

3шт.

6

47753804

HYD CONNECTOR

Section Valve

1шт.

7

47753812

GASKET

3шт.

8

51402581

FITTING

Tee-Jet 90°

3шт.

9

51403495

FILTER STRAINER

Incl 31 - 36

1шт.

10

47753814

GASKET

1шт.

11

47752432

HYD CONNECTOR

Gauge Port, 0.25" Female

1шт.

12

51403056

CLAMP

Tee-Jet

6шт.

13

47753817

CLIP

Manifold

1шт.

14

47753818

CLIP

Manifold

3шт.

15

47780608

HYD CONNECTOR

Liquid Fertlizier Manifold

1шт.

16

47780622

HYD CONNECTOR

Elbow, 90°, 1"

1шт.

17

51405153

MOUNT

Tee-Jet

1шт.

18

47822425

WIRE HARNESS

Jumper, Section Valve

3шт.

19

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

12шт.

20

86639317

WASHER,6.4mm ID x 13mm OD x 2mm Thk

12шт.

21

9706755

NUT,M6, Cl 8

12шт.

22

51403586

VALVE

1" Ball

1шт.

23

47940558

HOSE

90°

1шт.

24

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

25

86619801

FLANGE NUT,M8 x 1.25, Cl 8

8шт.

26

87016721

HOSE CLAMP,17.5mm - 31.7mm

3шт.

27

86643166

HOSE CLAMP,#16, 20.6mm - 38.1mm, Type F Worm Gear, W/ Liner

2шт.

28

47766691

ELBOW,1/4" 90 Degree Poly Street Elbow

1шт.

29

134329C3

HOSE

Bulk 1", Cut to Length 705mm L

1шт.

30

84239343

SENSOR

Pressure

1шт.

31

NSS

NOT SOLD SEPARAT

Serviced W/ Ref 9

1шт.

32

47753768

GASKET

Strainer

1шт.

33

47753773

SCREEN

Strainer

1шт.

34

NSS

NOT SOLD SEPARAT

Serviced W/ Ref 9

1шт.

35

47753780

GASKET

Strainer

1шт.

36

47753785

HYD CONNECTOR

Strainer Cap

1шт.
