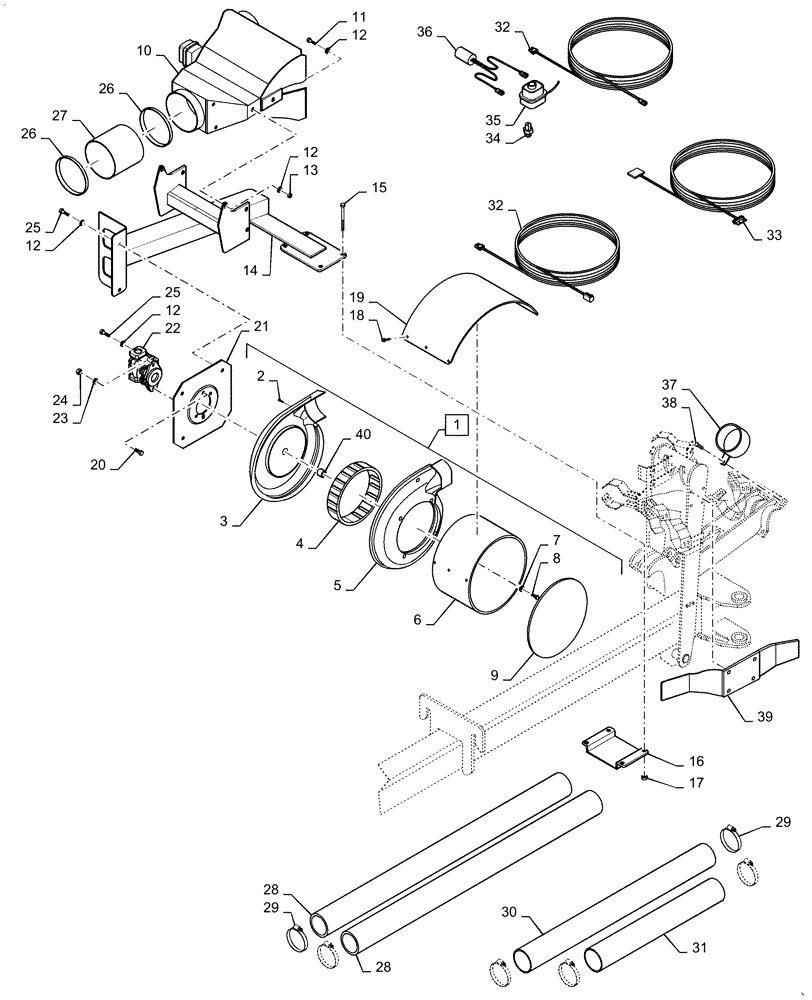

Запчасти Case IH 1625 (77.904.AA[05]) - FAN TO FRAME (77) - SEEDING/PLANTING

1

73358222

FAN

8 HYDRAULIC FAN KIT W/ SCREEN

1шт.

2

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

3

73358931

FAN HOUSING

LH

1шт.

4

73358932

IMPELLER

FAN 8 IN

1шт.

5

73358930

FAN HOUSING

8 IN HOUSING, RH

1шт.

6

73358933

SCREEN

8 IN SCREEN WA

1шт.

7

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

8

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

9

73359234

CAP

FAN 8 IN SCREEN CAP

1шт.

10

73359172

VALVE

AIR VALVE ASSY 2 SECTION

1шт.

11

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

12

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

13

280136

NUT,3/8"-16, G8

1шт.

14

73359173

MOUNT

VALVE, FAN 12,16YP

1шт.

15

84183814

BOLT

1/2-13X10.00 GR 5

1шт.

16

73359177

PLATE

FAN MOUNT

1шт.

17

88871

NUT,1/2"-13, GC

1шт.

18

73358791

SCREW

12-14X3/4

1шт.

19

73358036

SHIELD

FAN INLET RAIN

1шт.

20

88338

BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 5

1шт.

21

73359049

PLATE

8 IN, B PILOT

1шт.

22

73357928

HYDRAULIC MOTOR

PARKER 330C 0.99CIR

1шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

24

80084952

NUT

1шт.

25

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

26

73357814

CLAMP

8 INCH WORM DRIVE

1шт.

27

73357998

HOSE

8.0 ID DUCTING X 0.4 FT

1шт.

28

73357996

HOSE

6.0 ID DUCTING X 13.5 FT

1шт.

28

73357995

HOSE

6.0 ID DUCTING X 11.0 FT

1шт.

29

73358361

CLAMP

WRM DRV 96SS (4.75-6.5

1шт.

30

73357997

HOSE

6.0 ID DUCTING X 8.2 FT

1шт.

31

73357991

HOSE

6.0 ID DUCTING X 6.7 FT

1шт.

32

73357743

WIRE HARNESS

20 FT EXT 3 PIN WP

1шт.

33

73357745

WIRE HARNESS

17 FT EXT 6 PIN WP

1шт.

34

73357778

SENSOR

PRESSURE 0 0.5 PSI

1шт.

35

73357762

ACTUATOR

ROTARY

1шт.

36

73357772

CONVERTER

VOLTAGE TO FREQ

1шт.

37

73357538

DUCT

6IN DUCTING

1шт.

38

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

1шт.

39

73359174

BRACKET

TOWER HOSE

1шт.

40

73358228

BUSHING

1.00 X 1/4 KEY

1шт.

41

73358747

MODULE

CFM Module AFF Attached to #39 Bracket

1шт.
