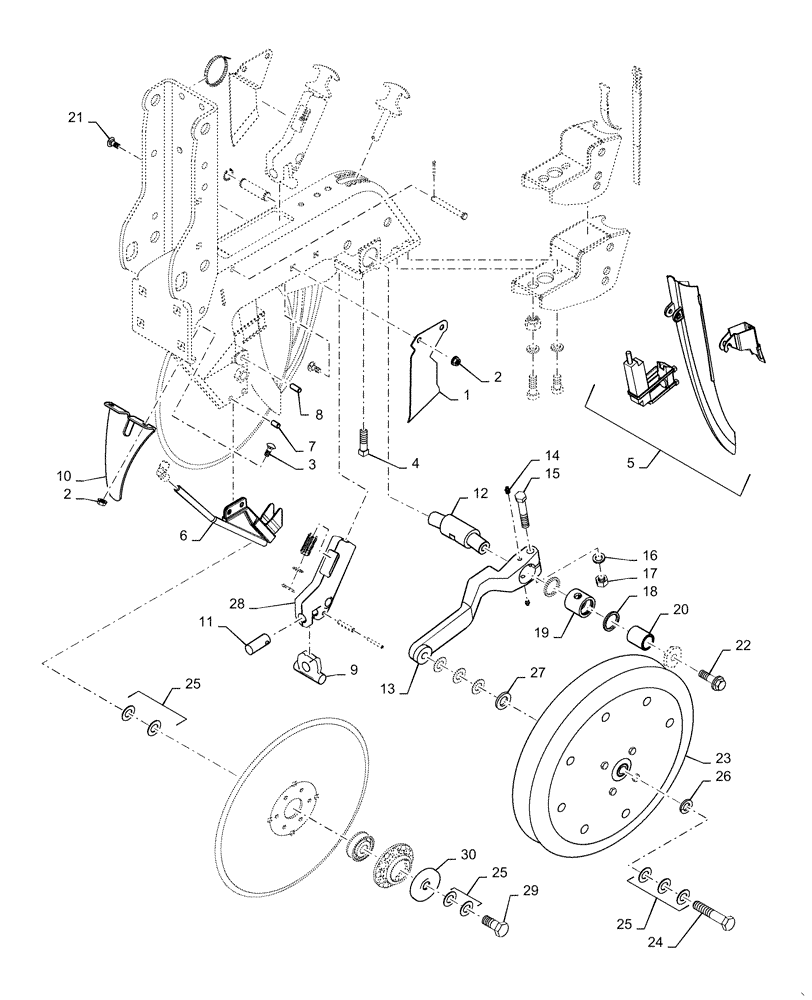

Запчасти Case IH 1625 (77.105.AG[14]) - OPENER BODY (77) - SEEDING/PLANTING

1

73357624

SCRAPER

DISC LH

1шт.

2

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

3

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

4

73358300

SCREW

1/2-13X 1 3/4 SQ HD SS G5

1шт.

5

73357528

SENSOR

SEED TUBE AM TB,CLIP AND SENSOR

1шт.

6

73357641

SUPPORT

SCRAPER SEP WLDMT 3/8 FRT

1шт.

7

73358548

PIN

PIN ROLL 5/16 X 5/8

1шт.

8

73358549

PIN

PIN ROLL 5/16 X 7/8

1шт.

9

73357616

FRAME

WALKBEAM

1шт.

10

73357628

DISC

SHIELD

1шт.

11

73357618

PIN

WALKBEAM PIVOT PIN

1шт.

12

73357148

SPINDLE

SIDE DEPTH WHL ARM SPINDL

1шт.

13

73357149

ARM

SIDE DEPTH WHEEL ARM

1шт.

14

87414

LUBE NIPPLE,1/4" - 28

1шт.

15

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

17

9803187

NUT,1/2"-13, G8

1шт.

18

73358004

SEAL

U CUP SEAL

1шт.

19

73357158

SEAL

OUTER BUSHING INNER CUP SEAL

1шт.

20

73357150

BUSHING

DEPTH WHL ECCENTRIC BUSHN

1шт.

21

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

21

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

22

73358403

SCREW

1/2-13 X 1 1/2 GR8 NYL PL

1шт.

23

73357957

WHEEL ASSY

2.5X16 SIDE DEPTH WHEEL

1шт.

24

9827853

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 5

1шт.

25

73358634

WASHER

1.19 X .63 X 18GA

1шт.

26

86729275

LOCK WASHER,5/8 0.634 CST ZND

LOCK, REG 5/8 0.634

1шт.

27

73358621

WASHER

FLAT 1.31ODX.65IDX.188

1шт.

28

73357617

MOUNT

WALKBEAM MOUNT

1шт.

29

73358472

SCREW

5/8-11X1 1/2 GR5

1шт.

30

73357001

COVER

FLANGE DUST COVER

1шт.
