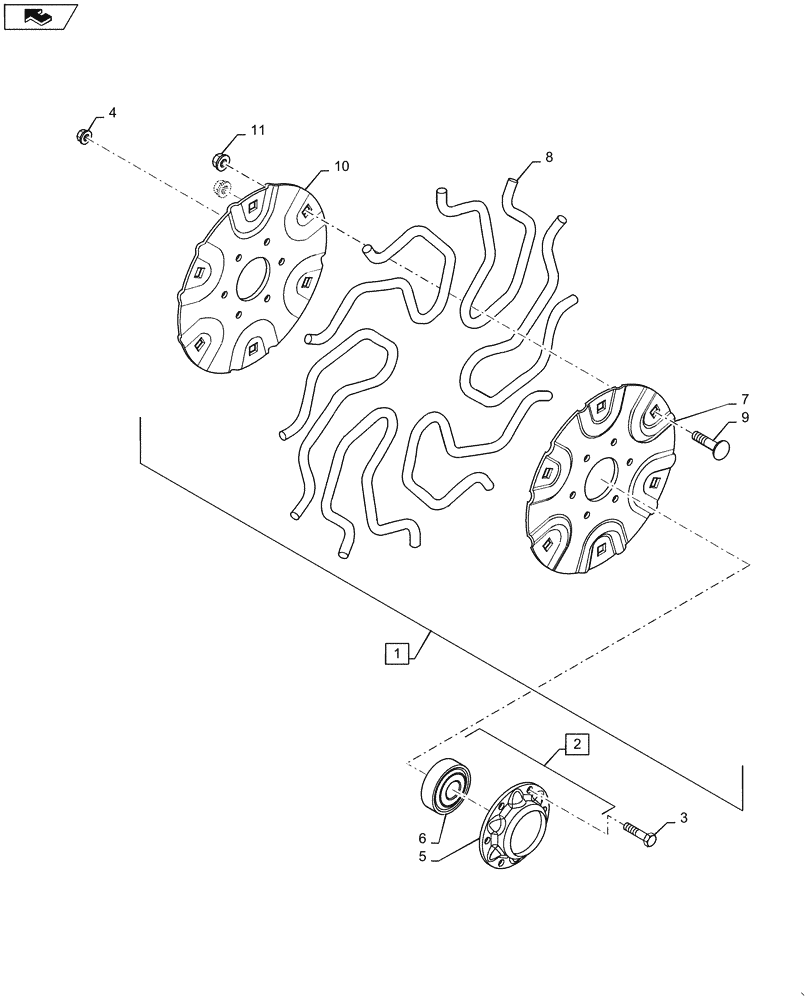

Запчасти Case IH 1625 (77.105.AG[11]) - TERRA TINE WHEEL (77) - SEEDING/PLANTING

1

73357198

WHEEL ASSY

RIGHT HAND, Incl 2 - 11

1шт.

1

73357199

WHEEL ASSY

LEFT HAND, Incl 2 - 11

1шт.

2

73357193

FLANGED BEARING

FRONT, Incl 3, 5, 6

1шт.

3

80280641

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

6шт.

4

86624020

FLANGE NUT,Flg, 1/4"-20.G5

6шт.

5

73358209

BOLT

1шт.

6

73357119

SPH ROLLER BEARING

1шт.

7

73357189

FLANGE

FRONT

1шт.

8

73357848

SPRING

TERRA-TINE, 15 FINGER

1шт.

9

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

10

73357187

FLANGE

BACK

1шт.

11

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

6шт.
