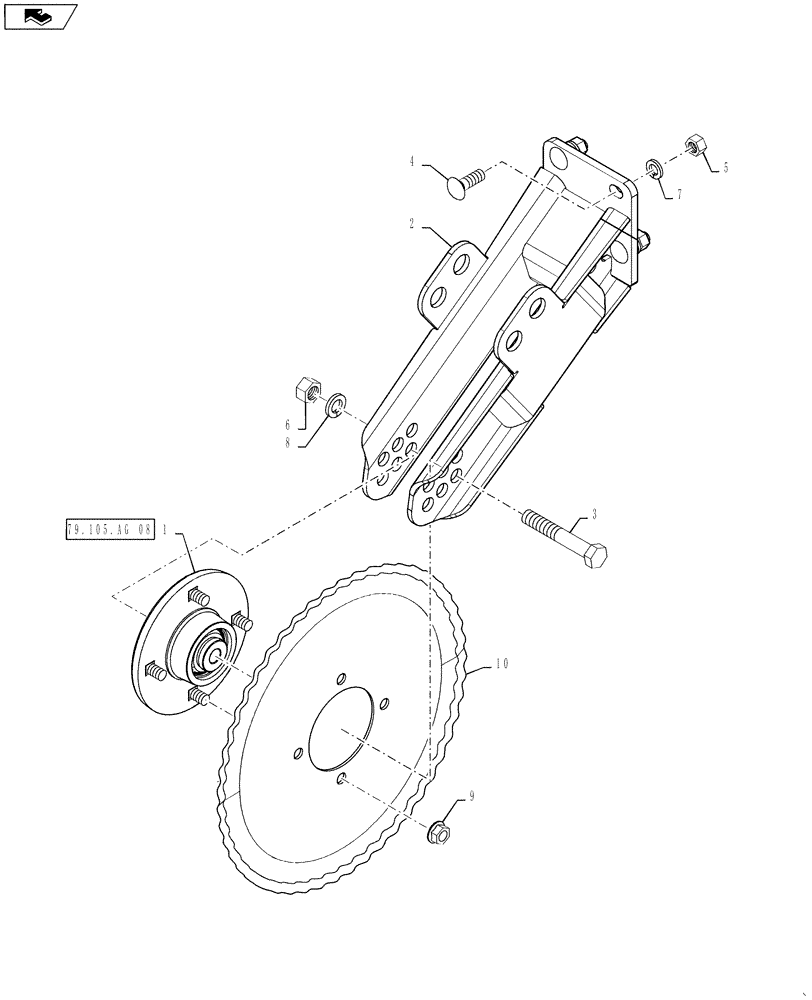

Запчасти Case IH 1625 (77.105.AG[08]) - UNIT MOUNT COULTER (77) - SEEDING/PLANTING

1

73357176

HUB

25S NARROW HUB ASSEMBLY

1шт.

2

73358779

MOUNT

UNIT MOUNTED COULTER MOUNT

1шт.

3

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

6шт.

4

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

5

9803187

NUT,1/2"-13, G8

4шт.

6

86625068

NUT,5/8"-11, G8

6шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

8

86729275

LOCK WASHER,5/8 0.634 CST ZND

6шт.

9

73358488

NUT

1шт.

10

73358809

COULTER

COULTER BLADE, TURBO 15'" OD

1шт.
