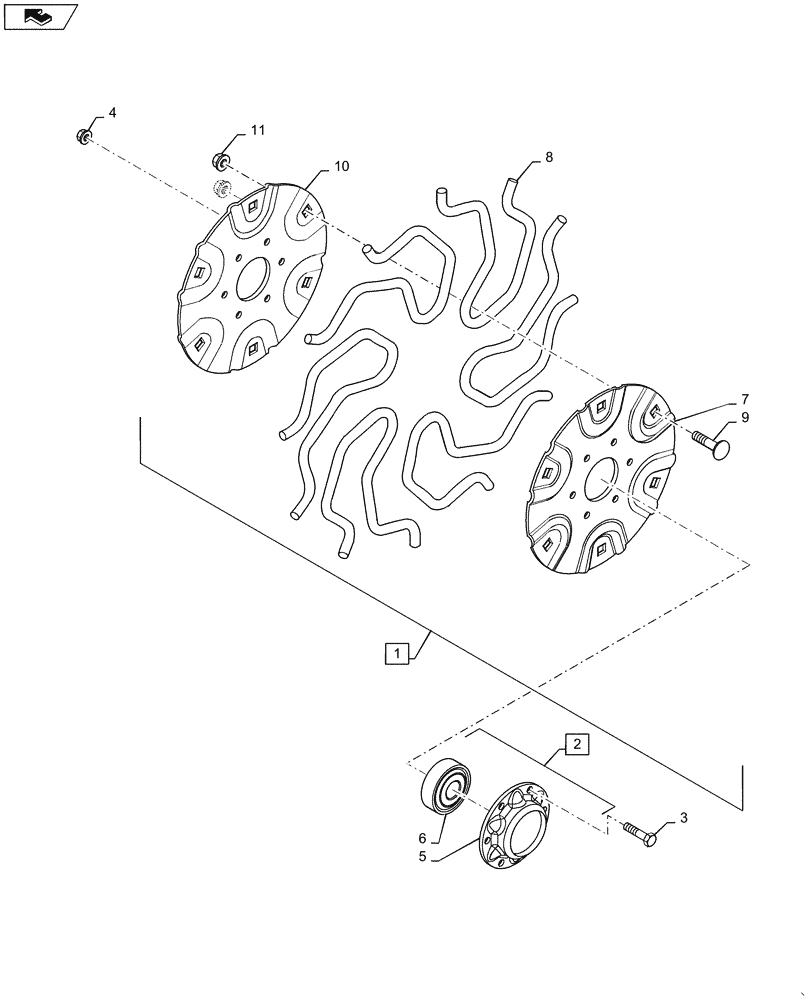

Запчасти Case IH 1625 (75.200.AA[01]) - TERRA-TINE 15" WHEEL (75) - SOIL PREPARATION

1

73357198

WHEEL ASSY

TERRA TINE WHL SUB ASSY 15 RH Incl 7 - 11

1шт.

1

73357199

WHEEL ASSY

TERRA TINE WHL SUB ASSY 15 LH Incl 7 - 11

1шт.

2

73357193

FLANGED BEARING

Incl 6 - 5

1шт.

3

80280641

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

4

86624020

FLANGE NUT,Flg, 1/4"-20.G5

1шт.

5

73358209

BOLT

1шт.

6

73357119

SPH ROLLER BEARING

1шт.

7

73357189

FLANGE

1шт.

8

73357848

SPRING

1шт.

9

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

10

73357187

FLANGE

1шт.

11

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.
