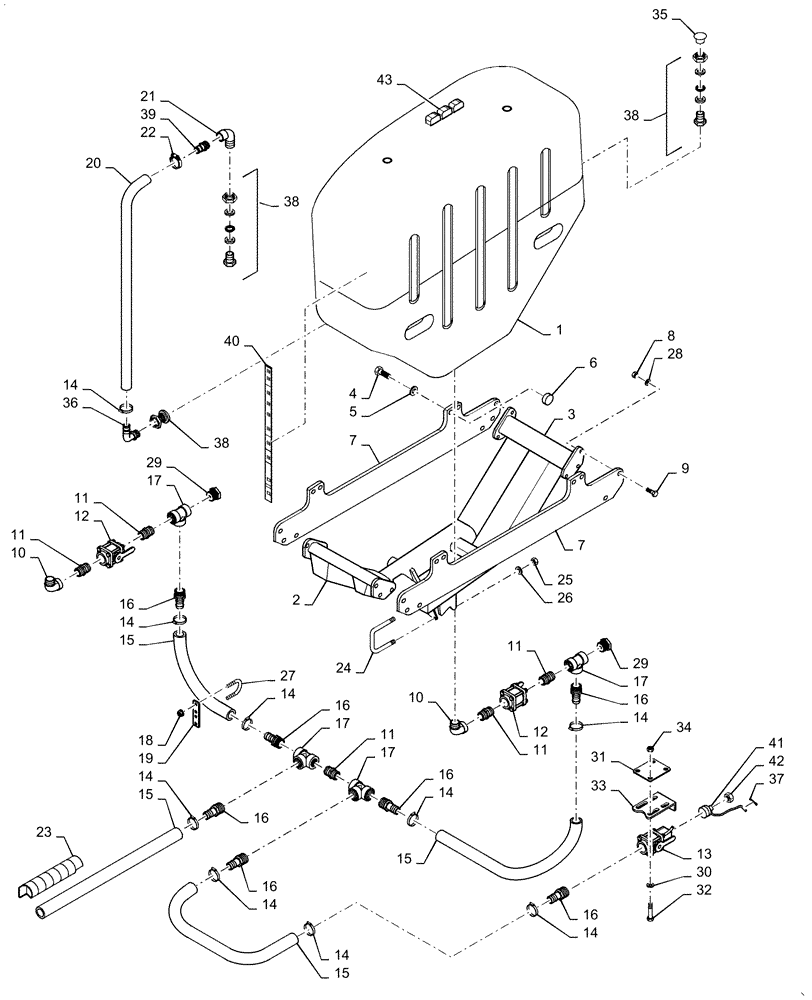

Запчасти Case IH 1625 (63.100.AB[01]) - FERTILIZER TANKS AND MOUNTS (63) - CHEMICAL APPLICATORS

1

73358028

TANK

BULK PLANTER 200 GAL FERT

1шт.

2

73357659

FRAME

200 GAL TANK SUPPORT FRAME RH

1шт.

3

73357658

FRAME

200 GAL TANK SUPPORT

1шт.

4

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

6

73357976

BRACKET

BUMP STOP 2 X 1 X 1/2 13

1шт.

7

73357657

SUPPORT

TANK CRADLE SIDE BAR

1шт.

8

9803187

NUT,1/2"-13, G8

1шт.

9

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

10

73358383

FITTING

1 1/2MNPT X 1 1/2FNPT POLY

1шт.

11

73358303

FITTING

1 1/2MNPT POLYPROP

1шт.

12

73358128

VALVE

1 1/2FNPT BALL POLYPROP

1шт.

13

73358129

VALVE

1 1/2FNPT X 2FCL POLY

1шт.

14

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

1шт.

15

73358252

HOSE

1 1/2 ID 150PSI EPDM

1шт.

16

73358304

FITTING

1 1/2MNPT X 1 1/2HB POLYP

1шт.

17

73358586

FITTING

1 1/2FNPT POLYPROP

1шт.

18

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

19

73357801

BRACKET

WET BOOM FLAT HOSE BRACKET

1шт.

20

73358247

HOSE

3/4ID X 1/8 WL CLEAR PVC

1шт.

21

73358389

FITTING

3/4MNPT X 3/4FNPT SS

1шт.

22

73358359

CLAMP

1шт.

23

73357992

PROTECTOR

WRAP HOSE 2 3/16 ID

1шт.

24

73358602

U-BOLT

3/4-10 X 7 X 8 1/2

1шт.

25

280954

NUT,3/4"-10, G5

1шт.

26

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

27

73358211

CLAMP

MUFFLER CLAMP 2.50 SIZE

1шт.

28

86729275

LOCK WASHER,5/8 0.634 CST ZND

1шт.

29

73358556

PIPE PLUG

1 1/2MNPT POLYPROP

1шт.

30

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

31

73359183

PLATE

MVNT CLAMP PLATE

1шт.

32

86000020

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

33

73357097

PLATE

VALVE MOUNT

1шт.

34

87530607

NUT

1шт.

35

73358561

PIPE PLUG

3/4MNPT POLYPROP

1шт.

36

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

37

73358532

COTTER PIN

1шт.

38

73358321

FITTING

3/4MNPT X 3/4HB SS

1шт.

39

73358321

FITTING

1шт.

40

73358174

DECAL

YP FERTILIZER LEVEL

1шт.

41

73358559

PLUG

1шт.

42

280136

NUT,3/8"-16, G8

1шт.

43

73359233

LID

TANK LID 8 COMP ACE ROTO-MOLD

1шт.
