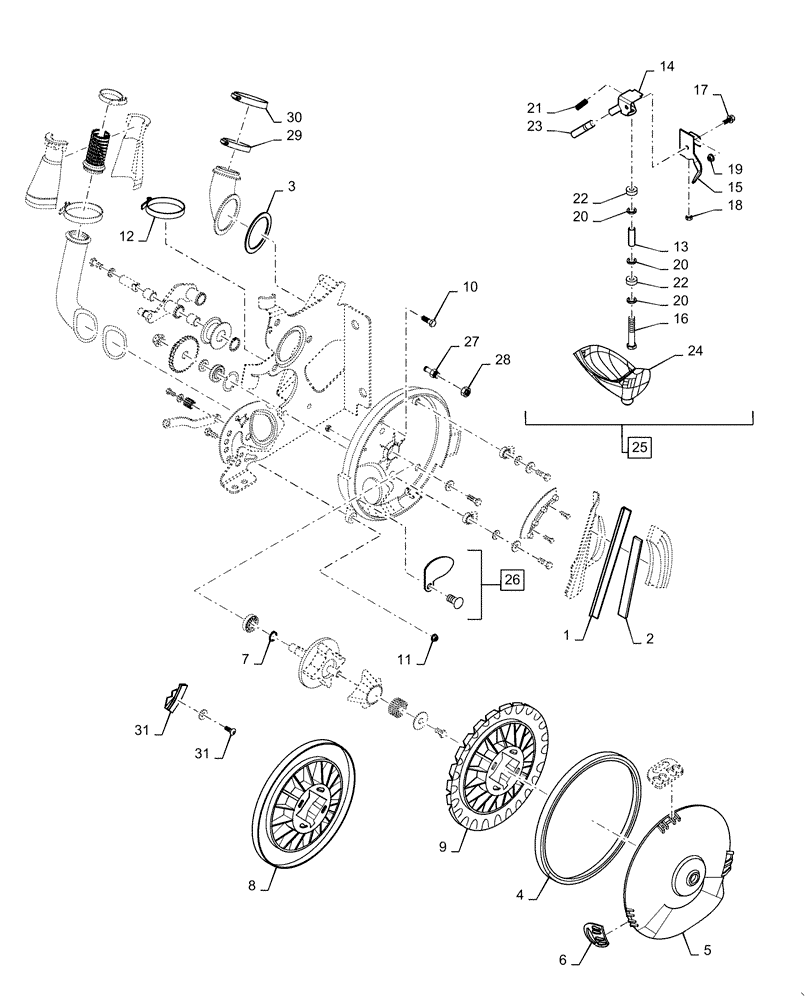

Запчасти Case IH 1625 (61.904.AA[15]) - AIR METER ASSEMBLY (CONTINUED) (61) - METERING SYSTEM

1

73358224

BRUSH

MECHANICAL, BRUSH, STRIP, LONG

1шт.

2

73358225

BRUSH

MECHANICAL, BRUSH, STRIP, SHORT

1шт.

3

73358226

GASKET

GASKET, OVAL, AIR IN

1шт.

4

73358053

SEAL

EDGE SEAL 3/32 X 7/16X.24.25L

1шт.

5

73358806

COVER

AIR MTR RAIN COVER

1шт.

6

73358052

LATCH

LATCH, FLEXIBLE SNAP

1шт.

7

73358578

SNAP RING

SNAP RING EXT 5/8 .050 T

1шт.

8

73358659

DISC

BLANK DISC - REQUIRED IN METER FOR BLANK ROWS

1шт.

9

73358649

DISC

CORN (24 CELL ROUND - LARGE)

1шт.

9

73358647

DISC

CORN (24 CELL ROUND - SMALL)

1шт.

9

73358650

DISC

CORN (40 CELL ROUND - LARGE)

1шт.

9

73358648

DISC

CORN (40 CELL ROUND - SMALL)

1шт.

9

73358643

DISC

SOYBEAN (84 CELL)

1шт.

9

73358654

DISC

MILO (130 CELL)

1шт.

9

73358651

DISC

CORN (24 CELL FLAT - LARGE)

1шт.

9

73358652

DISC

CORN (40 CELL FLAT - LARGE)

1шт.

9

73358653

DISC

MILO (65 CELL)

1шт.

9

73358644

DISC

SOYBEAN (168 CELL)

1шт.

9

73358658

DISC

WHEAT (84 CELL - VOLUMETRIC)

1шт.

9

73359269

DISK

VOLUMETRIC NO. 1 84 CELL

1шт.

10

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

11

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

12

73357826

HOSE CLAMP

CLAMP 1 11/16

1шт.

13

73357177

SPACER

FERTILIZER TINE SPACER

1шт.

14

73358787

BRACKET

CLEANOUT FUNNEL

1шт.

15

73358788

BRACKET

CLEANOUT FUNNEL LATCH

1шт.

16

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

17

73358406

SCREW

1шт.

18

87530607

NUT

TORQUE, NON-MTL 1/2-13 GR B

1шт.

19

247780

SERRATED NUT,Flg, USR, 3/8"-16

1шт.

20

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

21

73358792

SPRING

.438ODX1.5X.046W

1шт.

22

73358637

WASHER

1 3/8ODX9/16IDX1/2

1шт.

23

73358012

HANDLE

GRIP .187 X .750 X 3

1шт.

24

73358048

FUNNEL

AIR METER CLEAN OUT FUNNEL

1шт.

25

73357563

BRACKET

CLEANOUT FUNNEL AND STORAGE

1шт.

26

73357561

BRACKET

AIR METER SHUTTER AND SQ SHAFT

1шт.

27

73358328

FITTING

AD 7/16MORB X 1/4HB

1шт.

28

87656

NUT,Jam, 7/16"-20, G5

1шт.

29

73357828

CLAMP

HOSE, NYLON HOSE CLAMP 1 7/8 2 1/

1шт.

30

87487829

CLAMP,1.56" - 2.5"

HOSE, 32 2.50/1.56 F W/LNR SST 3

1шт.

31

73358751

SHIELD

VOLUMETRIC METER - GRAIN

1шт.
