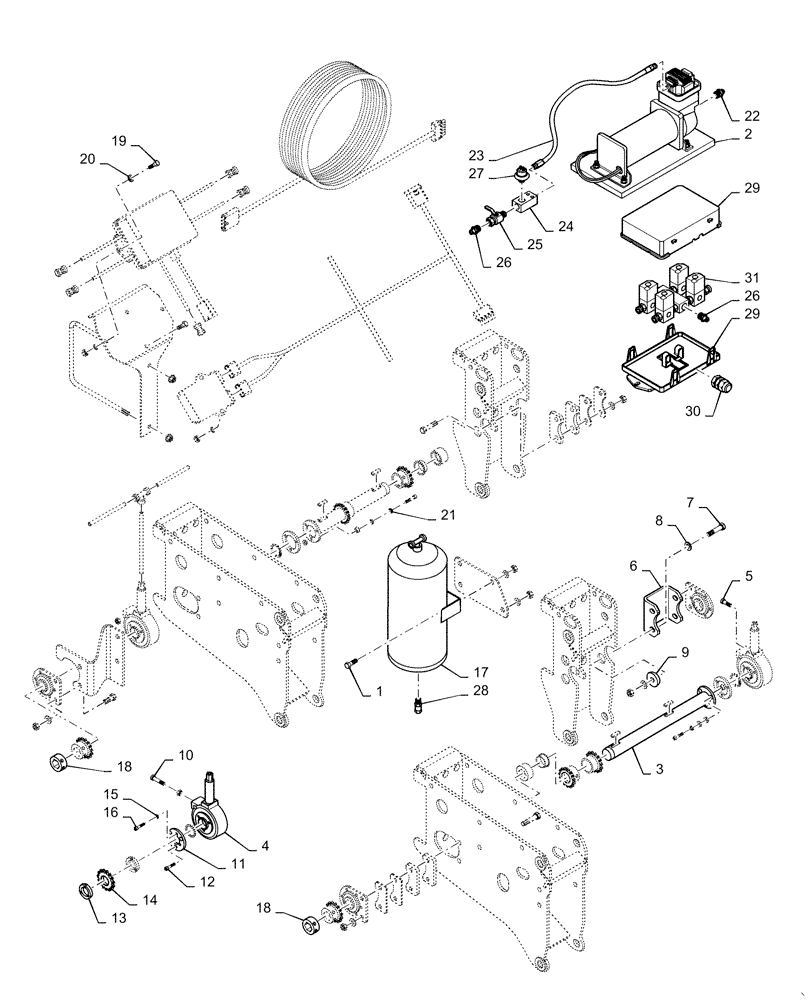

Запчасти Case IH 1625 (61.904.AA[11]) - TRU-COUNT CLUTCH ASSEMBLY (CONTINUED) (61) - METERING SYSTEM

1

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

2

73358104

AIR COMPRESSOR

TRU COUNT COMPRESSOR

1шт.

3

73357429

TUBE

COUNT TR REVERSE SPKT TUB

1шт.

4

73358102

CLUTCH

TRU COUNT LH AIR CLUTCH

1шт.

5

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

6

73357468

BRACKET

1шт.

7

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

8

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

9

73357469

BUSHING

STEP BUSHING FOR OPENER BRG

1шт.

10

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

11

NS

NOT SERVICED

1шт.

12

73358474

SCREW

1шт.

13

NS

NOT SERVICED

1шт.

14

NS

NOT SERVICED

1шт.

15

73358103

TANK

1шт.

16

73357392

COLLAR

1шт.

17

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

18

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

19

73358629

WASHER

LOCK 10

1шт.

20

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

21

73358629

WASHER

1шт.

22

73358858

FITTING

FIT.1/4MNPTX1/4

1шт.

23

73358857

HOSE

68932 TRU CNT COMPRES

1шт.

24

73358860

AIR COMPRESSOR

TRU CNT MAN CMP 350/450C

1шт.

25

73358861

VALVE

TRU COUNT MINI BALL

1шт.

26

73358859

FITTING

69002-10S (10PK)TRU CNT TB

1шт.

27

73358864

PRESSURE SWITCH

1шт.

28

73358856

FITTING

TNK DRN 1/4

1шт.

29

73358862

BODY

1шт.

30

73358863

VALVE

1шт.

31

73358855

SINGULATOR

TRU COUNT AIR VALVE

1шт.
