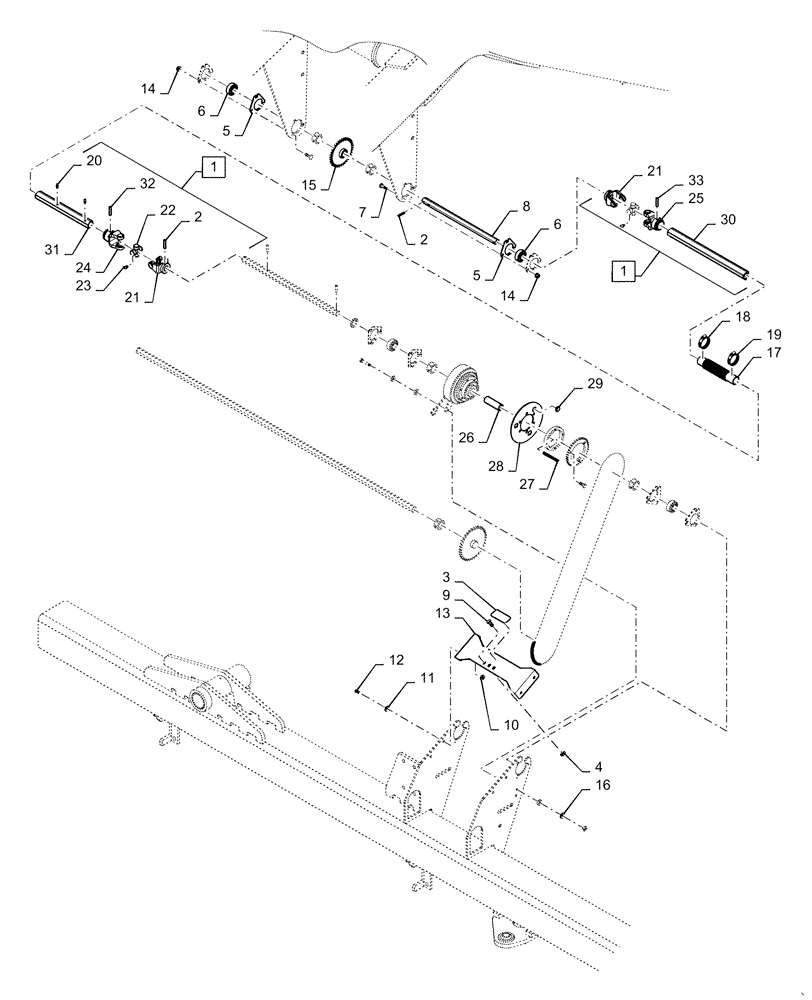

Запчасти Case IH 1625 (61.904.AA[08]) - WING DRIVE CONTINUED (61) - METERING SYSTEM

1

73358108

SHAFT

DRIVESHAFT YP PLANTER

1шт.

2

87020818

LOCK PIN,1/4" OD x 2" OAL, Slotted

1шт.

3

73358172

DECAL

CLUTCH LOCKUP

1шт.

4

73358496

NUT

HEX NYLOCK M8X1.25 PLT

1шт.

5

73358088

FLANGE

1шт.

6

87650438

BALL BEARING,22.25mm Hex x 52mm OD x 25.4mm W

1шт.

7

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

1шт.

8

73357344

SHAFT

7/8 HEX X 39.88

1шт.

9

86624003

BOLT,Hex, M8 x 14mm, Cl 8.8, Full Thd

1шт.

10

280136

NUT,3/8"-16, G8

1шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

12

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

13

73357331

PLATE

DRIVE PLATES BRACE

1шт.

14

9823743

FLANGE NUT,Flg, 5/16"-18

1шт.

15

73357882

SPROCKET

50C23 X 7/8 HEX

1шт.

16

80682

LOCK WASHER,1/4"

1шт.

17

73357989

BELLOWS

DRIVE SHAFT BELLOWS

1шт.

18

87487830

CLAMP,0.81" - 1.75"

20 1.75/0.81 F W/LNR

1шт.

19

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

1шт.

20

87588865

FITTING,M6 x 1 x 12mm L

LUBE, M6X1, 12MM

1шт.

21

73358926

YOKE

1шт.

22

73358922

UNION

CROSS ASSEMBLY

1шт.

23

150024

LUBE NIPPLE,45 Degree, M8 x 1

1шт.

24

73358925

YOKE

OUTER TUBE YOKE

1шт.

25

73358924

YOKE

INNER TUBE YOKE

1шт.

26

73357141

BUSHING

1 1/8 ODX7/8 HEX BORE

1шт.

27

73358482

KEY

1/4 X 3/16 X 3.80

1шт.

28

73357462

SHIELD

CLUTCH OIL

1шт.

29

73358050

PLUG

7/8 ROUND HOLE

1шт.

30

73359136

TIRE TUBE

INNER TUBE

1шт.

31

73359137

TUBE

OUTER TUBE

1шт.

32

412689

LOCK PIN,8mm OD x 50mm L, Slotted

1шт.

33

14607370

ROLL PIN,M8 x 45, Slotted

1шт.
