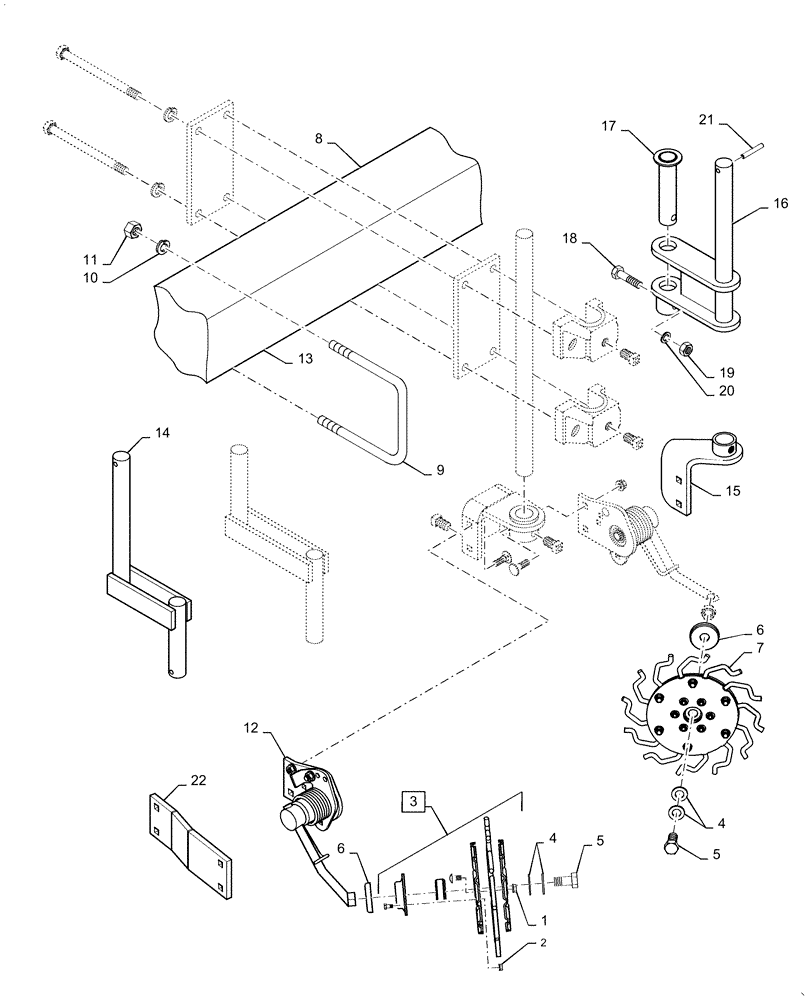

Запчасти Case IH 1625 (39.110.AM[06]) - FRAME MOUNT DOUBLE TERRA-TINE CONTINUED (39) - FRAMES AND BALLASTING

1

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

2

86624020

FLANGE NUT,Flg, 1/4"-20.G5

1шт.

3

73357200

WHEEL ASSY

TERRA TINE WHEEL 15 RH

1шт.

4

73358614

WASHER

1 1/4 X 3/4 X 18

1шт.

5

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

1шт.

6

73357613

COVER

FLANGE DUST COVER

1шт.

7

73357201

WHEEL ASSY

TERRA TINE WHEEL 15 LH

1шт.

8

73357178

TUBE

ATTACHMENT TUBE LH

1шт.

8

73357179

TUBE

ATTACHMENT TUBE RH

1шт.

9

73358610

U-BOLT

5/8-11 X 4 1/32 X 3 3/

1шт.

10

86729275

LOCK WASHER,5/8 0.634 CST ZND

1шт.

11

86625068

NUT,5/8"-11, G8

1шт.

12

73357196

PIVOT

1шт.

13

73359148

TUBE

ATTACHMENT TUBE LH

1шт.

13

73359149

TUBE

ATTACHMENT TUBE RH

1шт.

14

73359227

SHANK

1 1/2 X 19 X 6 OFFSET

1шт.

15

73359153

MOUNT

SHANK MOUNHT PIVOT LH

1шт.

15

73359152

MOUNT

SHANK MOUNT PIVOT RH

1шт.

16

73359150

SHANK

LOW PRO 7 OFFSET SHANK

1шт.

17

73359151

PIN

ATTACHMENT WLD PIN

1шт.

18

414-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

1шт.

19

86625068

NUT,5/8"-11, G8

1шт.

20

86729275

LOCK WASHER,5/8 0.634 CST ZND

1шт.

21

87635861

ROLL PIN

1шт.

22

73357192

ARM

TERRA TINE EXTENSION

1шт.
