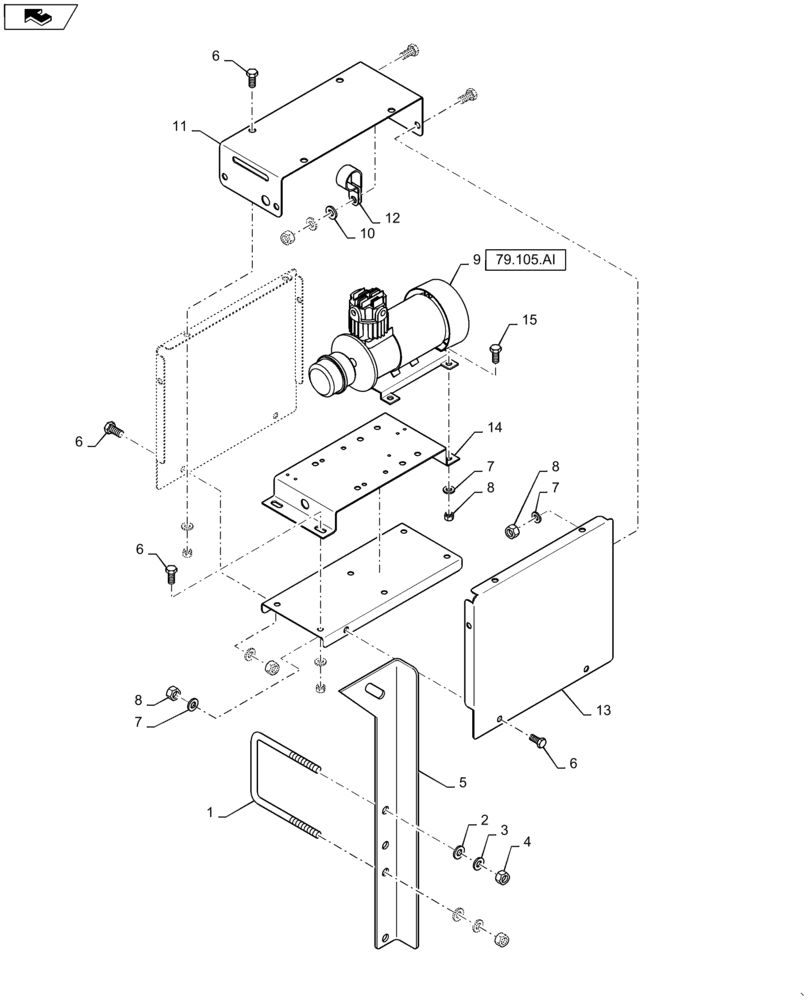

Запчасти Case IH 1625 (39.100.AB[12]) - ROW-PRO COMPRESSOR MOUNTING (39) - FRAMES AND BALLASTING

1

73358597

U-BOLT

1шт.

2

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

4

9803187

NUT,1/2"-13, G8

2шт.

5

73359182

SUPPORT

1шт.

6

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

7

80680

LOCK WASHER,3/8 0.381 CST ZND

7шт.

8

280136

NUT,3/8"-16, G8

7шт.

9

73358140

AIR COMPRESSOR

12V

1шт.

10

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

11

73358854

COVER

12 COMPRESSOR TOP

1шт.

12

73357817

CLIP

1шт.

13

73359068

COVER

RP COMPRESSOR SIDE

2шт.

14

73357632

MOUNT

COMPRESSOR

1шт.

15

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

16

73359276

FILTER

Incl in 9

1шт.
