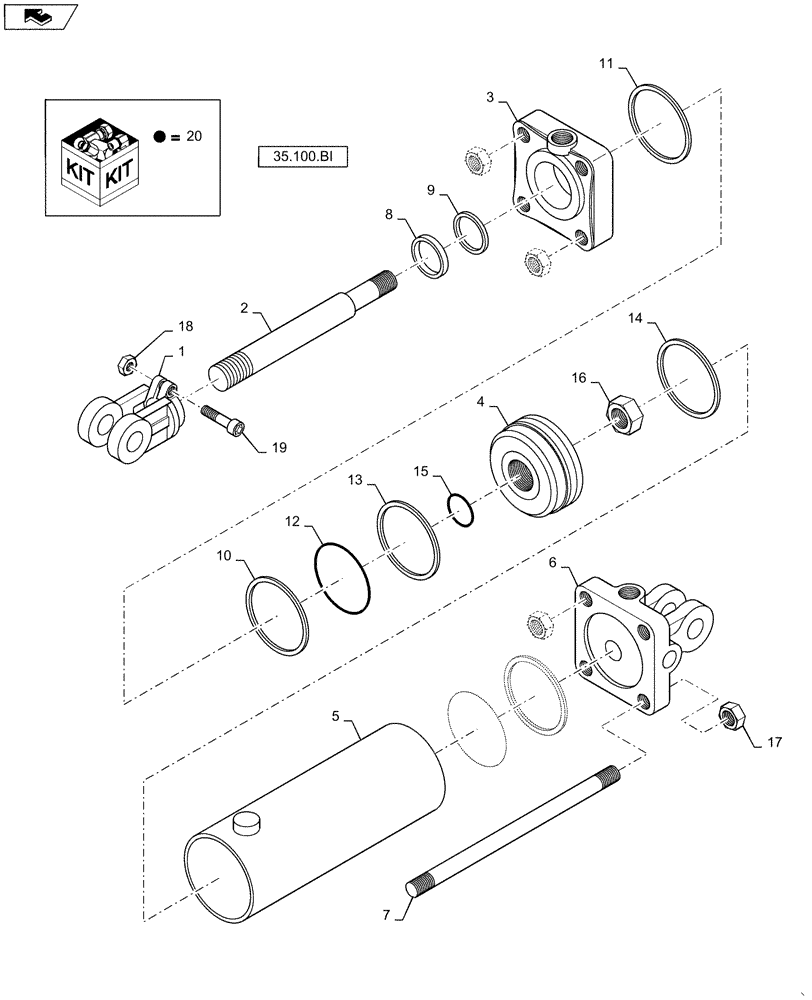

Запчасти Case IH 1625 (35.944.AC[12]) - HYDRAULIC CYLINDER 5.0 X 10 X 2.0 ROD (35) - HYDRAULIC SYSTEMS

1

73359141

CLEVIS

1.25PN 1.5-12THD

1шт.

2

73359160

ROD

1шт.

3

73359168

CYLINDER HEAD

1шт.

4

73359191

PISTON

1шт.

5

73359198

TUBE

1шт.

6

73359205

BASE PLATE

1шт.

7

73359211

TIE-ROD

1шт.

8

NSS

NOT SOLD SEPARAT

Wiper Incl In Seal Kit 20

1шт.

9

NSS

NOT SOLD SEPARAT

U-Cup Incl In Seal Kit 20

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring Incl In Seal Kit 20

1шт.

11

NSS

NOT SOLD SEPARAT

Back Up Seal Incl In Seal Kit 20

1шт.

12

NSS

NOT SOLD SEPARAT

Piston Seal Incl In Seal Kit 20

1шт.

13

NSS

NOT SOLD SEPARAT

Loader Incl In Seal Kit 20

1шт.

14

NSS

NOT SOLD SEPARAT

Wear Ring Incl In Seal Kit 20

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring Incl In Seal Kit 20

1шт.

16

73359019

NUT

1шт.

17

87315739

NUT

1шт.

18

88954

NUT,3/8"-16, G5

1шт.

19

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

20

73359216

SEAL KIT

1шт.
