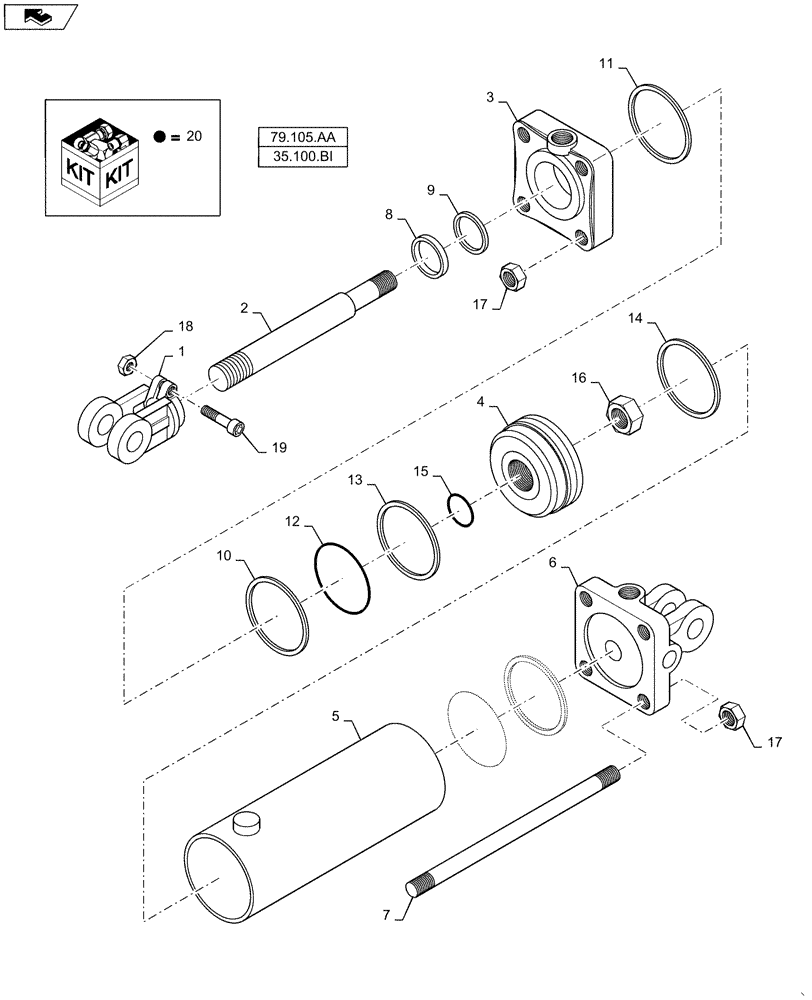

Запчасти Case IH 1625 (35.944.AC[11]) - HYDRAULIC CYLINDER 4.5 X 10.37 X 1.5 ROD (35) - HYDRAULIC SYSTEMS

1

73359141

CLEVIS

ROD CLEVIS 1.25PN 1.5-12THD

1шт.

2

73359158

ROD

1шт.

3

73359166

CYLINDER HEAD

1шт.

4

73359189

PISTON

1шт.

5

73359196

TUBE

1шт.

6

73359203

BASE PLATE

1шт.

7

73359210

TIE-ROD

1шт.

8

NSS

NOT SOLD SEPARAT

Wiper Incl In Seal Kit 20

1шт.

9

NSS

NOT SOLD SEPARAT

U-Cup Incl In Seal Kit 20

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring Incl In Seal Kit 20

1шт.

11

NSS

NOT SOLD SEPARAT

Back Up Incl In Seal Kit 20

1шт.

12

NSS

NOT SOLD SEPARAT

Piston Seal Incl In Seal Kit 20

1шт.

13

NSS

NOT SOLD SEPARAT

Loader Incl In Seal Kit 20

1шт.

14

NSS

NOT SOLD SEPARAT

Wear Ring Incl In Seal Kit 20

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring Incl In Seal Kit 20

1шт.

16

73359019

NUT

1 1/4 -12

1шт.

17

87315739

NUT

3/4-16 GR 5

1шт.

18

88954

NUT,3/8"-16, G5

1шт.

19

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

20

118616A1

SEAL KIT

Incl 8 - 15

1шт.
