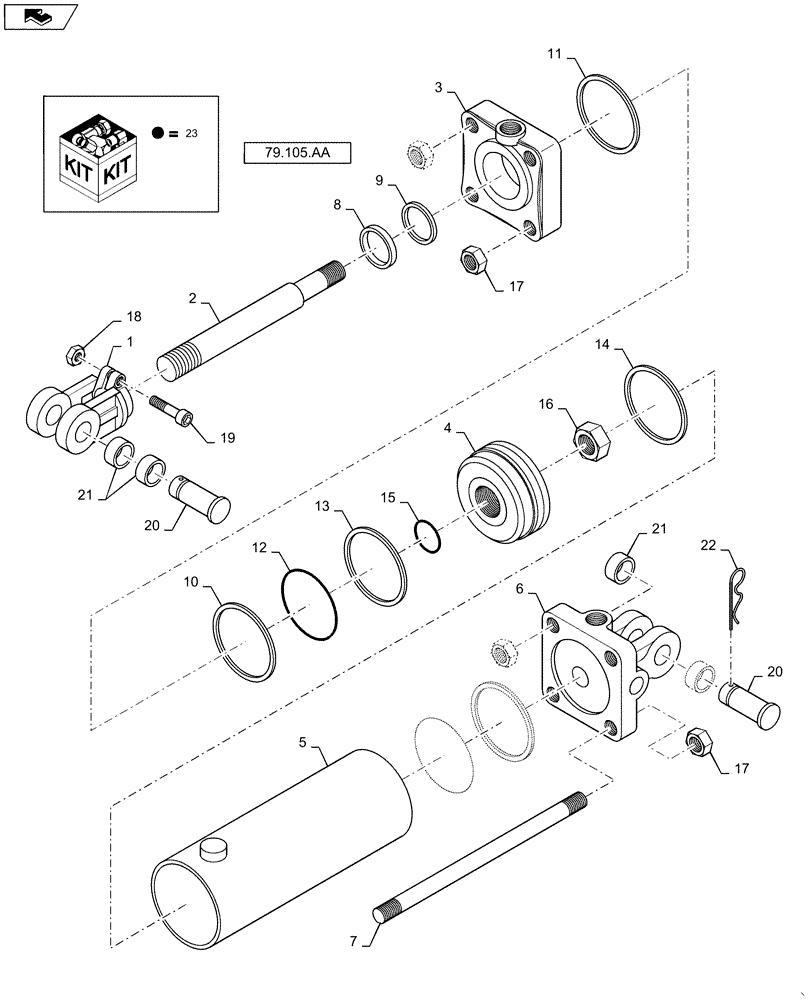

Запчасти Case IH 1625 (35.944.AC[10]) - HYDRAULIC CYLINDER 4.25X27.75X2 ROD (35) - HYDRAULIC SYSTEMS

1

73359140

CLEVIS

1шт.

2

73359159

ROD

NICKEL/CHROME ROD

1шт.

3

73359165

CYLINDER HEAD

1шт.

4

73359188

PISTON

1шт.

5

73359195

TUBE

1шт.

6

73359202

BASE PLATE

1шт.

7

73359209

TIE-ROD

1шт.

8

NSS

NOT SOLD SEPARAT

Wipper Incl In Seal Kit 23

1шт.

9

NSS

NOT SOLD SEPARAT

U-Cup Incl In Seal Kit 23

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring Incl In Seal Kit 23

1шт.

11

NSS

NOT SOLD SEPARAT

Back Up Incl In Seal Kit 23

1шт.

12

NSS

NOT SOLD SEPARAT

Seal Incl In Seal Kit 23

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring Incl In Seal Kit 23

1шт.

14

NSS

NOT SOLD SEPARAT

Wear Ring Incl In Seal Kit 23

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring Incl In Seal Kit 23

1шт.

16

73359019

NUT

1 1/4 -12

1шт.

17

87315739

NUT

3/4-16 GR 5

1шт.

18

88954

NUT,3/8"-16, G5

1шт.

19

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

20

73359044

PIN

1 X 3 11/16 GR5

1шт.

21

73358213

BUSHING

1 1/2X1 1/4X3/4LG

1шт.

22

73359007

PIN

COTTER

1шт.

23

73359218

SEAL KIT

Incl 8 - 15

1шт.
