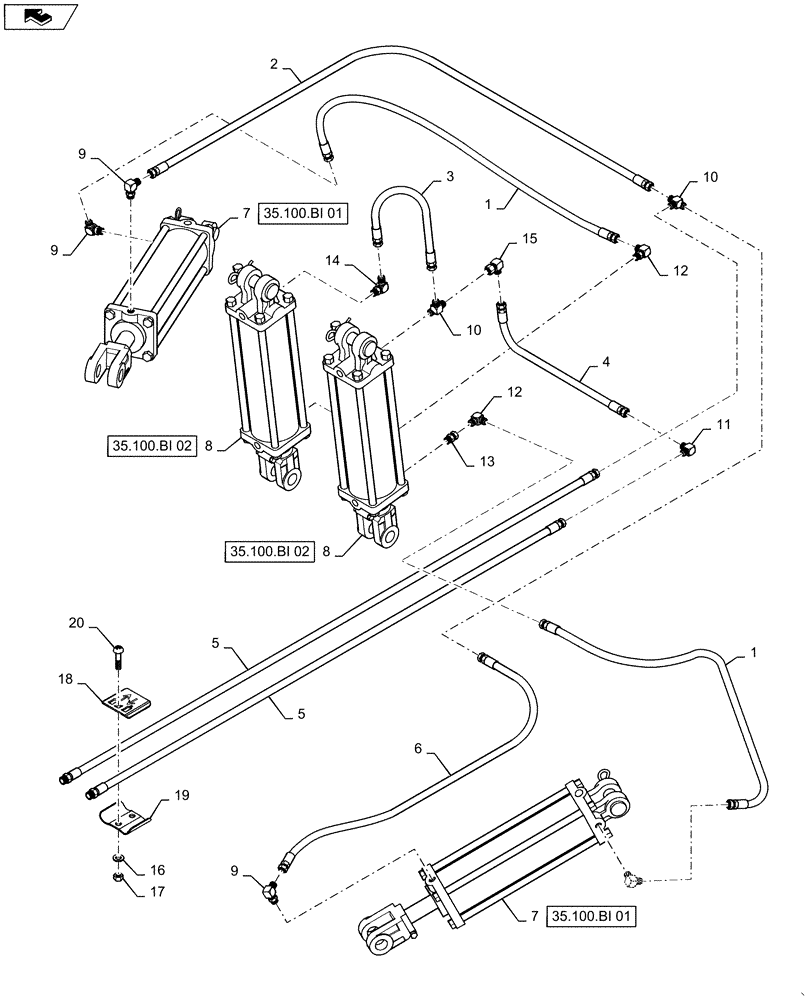

Запчасти Case IH 1625 (35.944.AC[05]) - LIFT HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

73358457

HYDRAULIC HOSE

HH3/8R2 300 9/16FJIC 16 Row

1шт.

1

73358455

HYDRAULIC HOSE

HH3/8R2 240 9/16FJIC 12 Row

1шт.

2

73358460

HYDRAULIC HOSE

HH3/8R2 394 9/16FJIC 16 Row

1шт.

2

73358459

HYDRAULIC HOSE

HH3/8R2 315 9/16FJIC 3/4FJIC 12 Row

1шт.

3

73358439

HYDRAULIC HOSE

HH3/8R2 030 3/4FJIC

1шт.

4

73358418

HYDRAULIC HOSE

HH1/2R2 168 3/4FJIC 16 Row

1шт.

4

73359222

HYDRAULIC HOSE

HH1/2R2 140 3/4FJIC 12 Row

1шт.

5

73358424

HYDRAULIC HOSE

HH1/2R2 312 3/4FJIC 3/4MORB 16 Row

1шт.

5

73358423

HYDRAULIC HOSE

HYD, HH1/2R2 280 3/4FJIC 3/4MORB 12 Row

1шт.

6

73358449

HYDRAULIC HOSE

HH3/8R2 156 9/16FJIC 3/4FJIC 16 Row

1шт.

6

73358446

HYDRAULIC HOSE

HH3/8R2 120 9/16FJIC 3/4FJIC 12 Row

1шт.

7

73357932

TIE-ROD

REP 4.50X10.37X1.5 ROD TI

1шт.

8

73357933

TIE-ROD

CYL REP 5X10X2.0 ROD (TIE)

1шт.

9

73358392

FITTING

3/4MORB 9/16MJIC

1шт.

10

73358583

FITTING

9/16MJIC 3/4MORB 9/16MJIC

1шт.

11

73358398

FITTING

90 3/4MJIC

1шт.

12

73358397

FITTING

9/16MJIC 9/16FJIC

1шт.

13

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

14

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

15

73358387

FITTING

3/4FJIC 3/4MJIC

1шт.

16

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

17

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

18

73357798

DECAL

LABEL, HYD HOSE CLAMP LABEL

1шт.

19

73357799

BRACKET

HYD HOSE CLAMP BRACKET

1шт.

20

280507

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

1шт.
