(44.901.AA[02]) - WING WHEEL ASSEMBLY FOR 24 ROW

Запчасти Case IH 1255 (44.901.AA[02]) - WING WHEEL ASSEMBLY FOR 24 ROW (44) - WHEELS

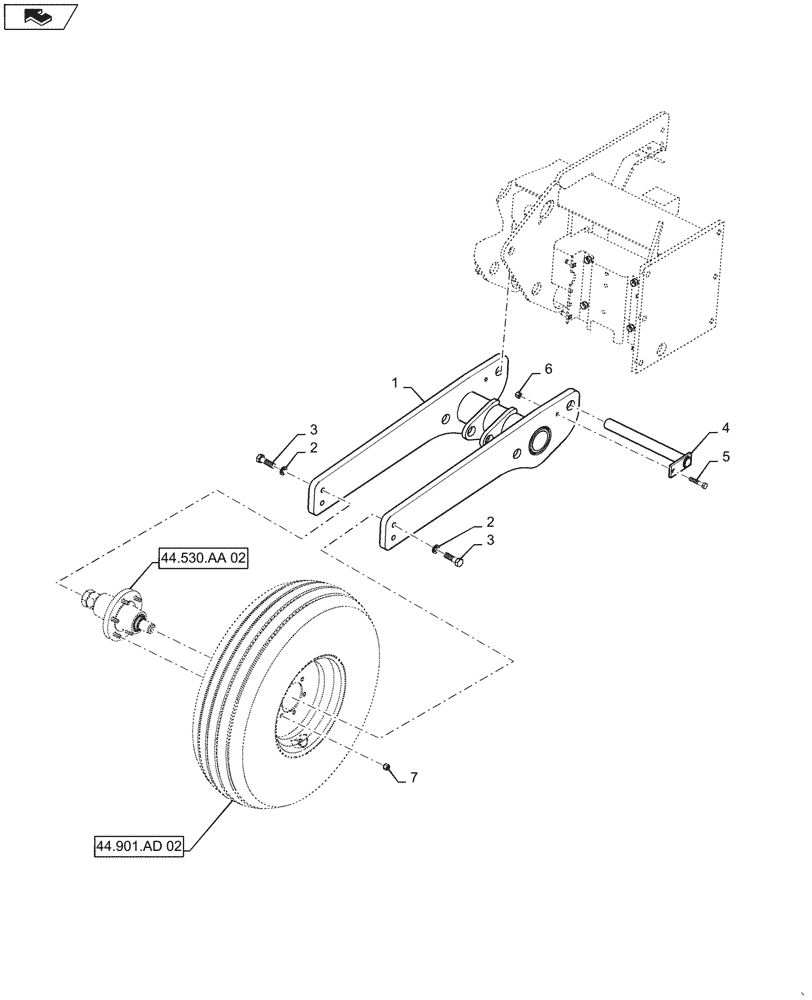

Схема запчастей Case IH 1255 - (44.901.AA[02]) - WING WHEEL ASSEMBLY FOR 24 ROW (44) - WHEELS
44.901.ad 02
2
2
5
4
6
3
7
3
1
44.530.aa 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87546011

WHEEL

Arm Wing Standard

4шт.

2

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

8шт.

3

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

8шт.

4

87503050

PIN

Wing Wheel Pivot

4шт.

5

20987

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

4шт.

6

87530607

NUT

1/2"

4шт.

7

F23214

WHEEL NUT

1/2 - 20

24шт.
