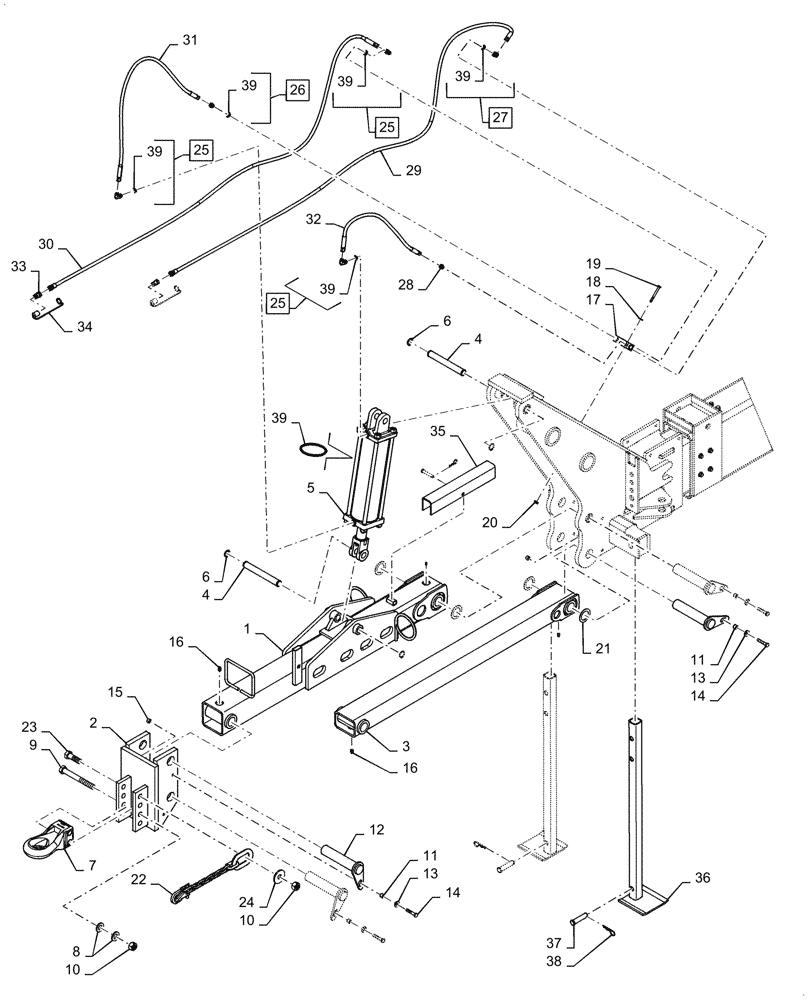

Запчасти Case IH 1255 (39.110.AB[03]) - DRAW BAR HITCH FOR 16 ROW AND 24 ROW (39) - FRAMES AND BALLASTING

1

87713028

TUBE

Hitch Upper Red

1шт.

2

87713030

BRACKET

Hitch Clevis

1шт.

3

87713029

TUBE,1524.4 mm L

1шт.

4

87694433

PIN

Cylinder

2шт.

5

87403328

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 1206.5mm Stroke

5.00

1шт.

6

86625148

SNAP RING,#125, Ext

4шт.

7

427981A1

TOW BAR

Hitch Base Red

1шт.

8

87036175

WASHER,1.06" ID x 2" OD x 0.22" Thk

4шт.

9

87020629

BOLT,Hex, 1" - 8 x 8 1/2", Gr 8

2шт.

10

86511609

NUT,1"-8, G8

3шт.

11

87695199

SPACER

Flag Pin

4шт.

12

87695200

HITCH PIN

Flag

4шт.

13

84158486

WASHER,0.53" ID x 1.25" OD x 0.19" Thk

4шт.

14

20987

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

4шт.

15

84233543

NUT

1/2

4шт.

16

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

4шт.

17

298624A1

VALVE

Check

1шт.

18

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

19

2485

BOLT,Hex, 1/4" - 20 x 3", Gr 5

2шт.

20

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

21

86625259

WASHER,2.06" ID x 3" OD x 0.11" Thk

4шт.

22

6853

CHAIN (AG)

40,400 Lb

1шт.

23

86539260

BOLT,Hex, 1" - 8 x 3", Gr 8

1шт.

24

84156180

WASHER,1.03" ID x 3" OD x 0.24" Thk

1шт.

25

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

Incl 39

3шт.

26

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

Incl 39

1шт.

27

84313

ELBOW,45 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

Incl 39

1шт.

28

93206C1

FITTING

One Way Orifice

1шт.

29

47446545

HOSE

3/8 x 135" from Aux Valve to Port V2

1шт.

30

47446545

HOSE

3/8 x 135" from Aux Valve to Port V1

1шт.

31

47446547

HOSE

3/8 x 70" from Rod Cylnder to Port C1

1шт.

32

47446546

HOSE

3/8 x 50" from Base Cylinder to Port C2

1шт.

33

1272399C2

QUICK MALE COUPLING

2шт.

34

333720A1

CAP

Quick Coupler Black

2шт.

35

84243360

STOP

Hitch Cylinder

1шт.

36

87723853

STAND

Planter Red

2шт.

37

87403990

HEADED PIN

1.00" x 4.28"

2шт.

38

1978738C1

HAIR PIN COTTER

2шт.

39

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

40

9737V2

SEAL KIT

Hydraulic Cylinder

1шт.
