(35.780.AD[01]) - TRACTOR BULK FILL HOSES FOR DRAW BAR HITCH

Запчасти Case IH 1255 (35.780.AD[01]) - TRACTOR BULK FILL HOSES FOR DRAW BAR HITCH (35) - HYDRAULIC SYSTEMS

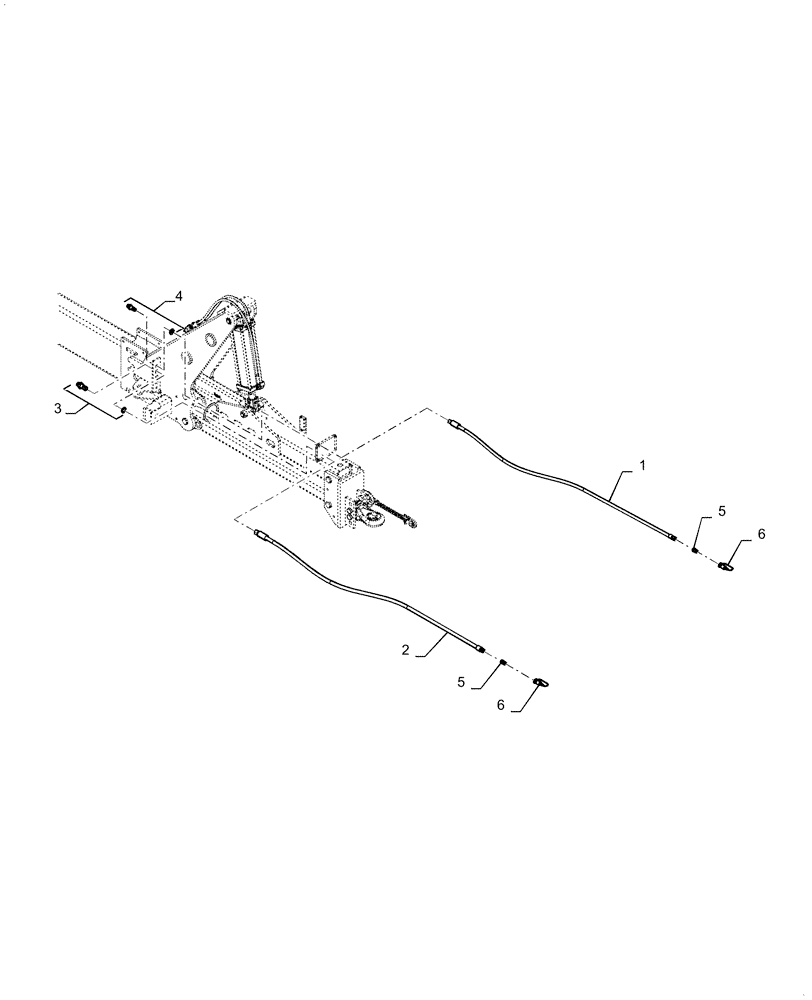

Схема запчастей Case IH 1255 - (35.780.AD[01]) - TRACTOR BULK FILL HOSES FOR DRAW BAR HITCH (35) - HYDRAULIC SYSTEMS
2
5
5
3
4
6
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47446544

HOSE

16mm ID x 3200mm Long

1шт.

2

47456340

HOSE

19mm ID x 3100mm Long

1шт.

3

86508629

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

4

9610690

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

5

1272399C2

QUICK MALE COUPLING

2шт.

6

333719A1

CAP

Quick Coupler, Yellow

2шт.
