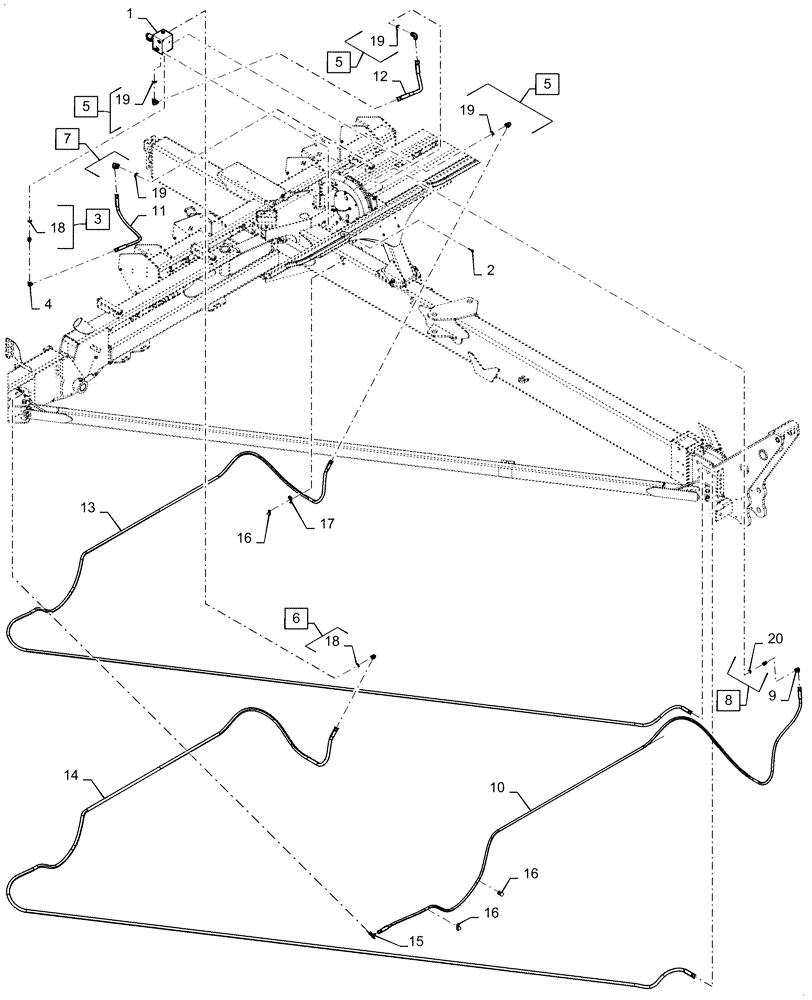

Запчасти Case IH 1255 (35.744.AC[02]) - HYDRAULIC BULK FILL FOR 24 ROW DRAW BAR HITCH (35) - HYDRAULIC SYSTEMS

1

84538083

VALVE

Block Bulk Fill

1шт.

2

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

3

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

to Port B1 on Valve, Incl 18

1шт.

4

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

5

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

to Port T1 on Valve, Incl 19

3шт.

6

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

to Port P1 on Valve, Incl 18

1шт.

7

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

Incl 19

1шт.

8

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 20

1шт.

9

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

10

84526404

HOSE

from Vaccum Fan to Tee

1шт.

11

1336925C1

HYDRAULIC HOSE

from Bulk Fill Valve Port B1 to Vaccum Fan

1шт.

12

84223562

HYDRAULIC HOSE

from Bulk Fill Valve Port B2 to Vaccum Fan

1шт.

13

47479055

HOSE

from Bulk Fill Valve Port P1 to Hitch Mounting Bracket

1шт.

14

87448898

HYDRAULIC HOSE,19mm ID x 12580mm L, SAE 100R17

from Bulk Fill Valve Port T1 to Hitch Mounting Bracket

1шт.

15

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

16

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

17

87482623

CLAMP

1шт.

18

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
