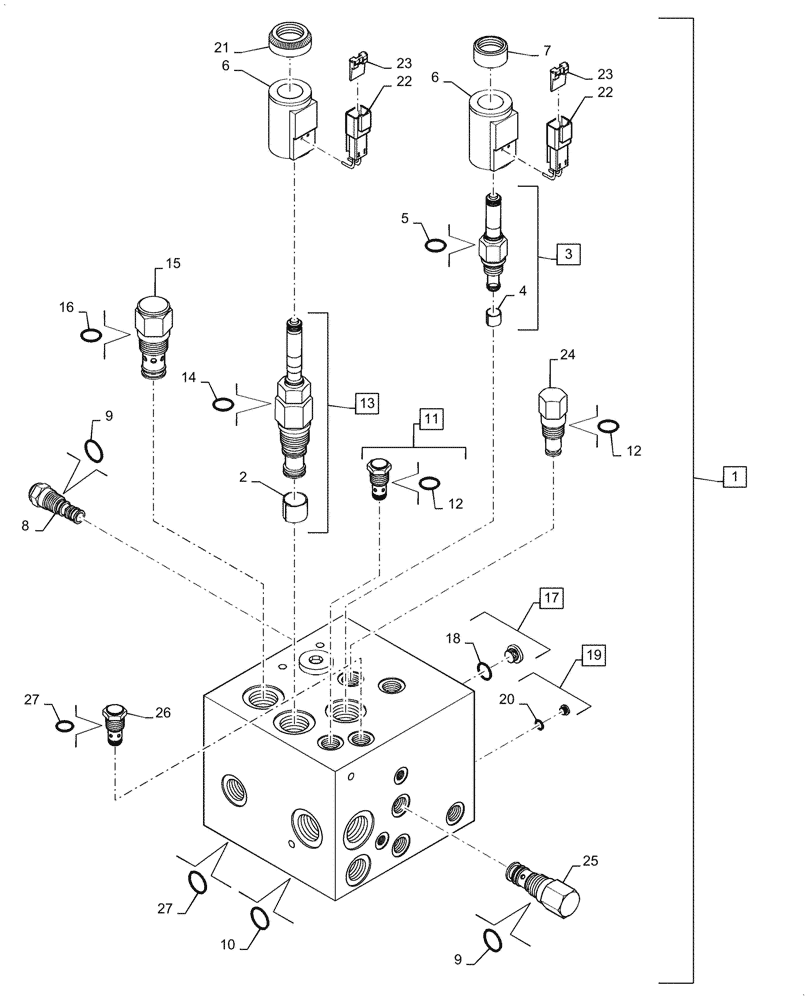

Запчасти Case IH 1255 (35.359.BB[07]) - DIRECT DRIVE MULTI VALVE, WING 1 BREAKDOWN (35) - HYDRAULIC SYSTEMS

1

84538086

VALVE

Assy, Direct Drive, Incl 2 - 27

1шт.

2

324489A1

SCREEN

Proportional Valve

1шт.

3

254969A2

HYDRAULIC VALVE

Flow Control Cartridge

2шт.

4

1285892C1

FILTER SCREEN

Flow Control Valve

1шт.

5

304494A1

SEAL KIT

Flow Control Valve

1шт.

6

188105A1

SOLENOID

Coil

2шт.

7

440028A1

NUT

Coil Retaining

1шт.

8

87506124

VALVE

Differential Pressure Sensing

1шт.

9

304391A1

SEAL KIT

Differential Pressure Sensing

1шт.

10

1341811C1

SPRING-CHECK

Sense Kit

2шт.

11

86511474

CHECK VALVE

Coast

1шт.

12

86508168

SEAL KIT

Relief Valve

2шт.

13

304495A3

VALVE

Cartridge, Flow Control

1шт.

14

304499A1

SEAL KIT

Seal, Flow Control Cartridge

1шт.

15

335894A1

VALVE

Flow Limiter

1шт.

16

1288954C1

SEAL KIT

Flow Limiter Valve

1шт.

17

9625178

PLUG,9/16" - 18 ORB

6шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.

19

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

20

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

188106A1

NUT

Retaining

2шт.

22

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cab Plastic Receptacle 2C

2шт.

23

225318C1

ELEC CONNECTOR,2 Pin

W2P

2шт.

24

134687A1

PLUG

Relief

1шт.

25

87427764

PLUG

Cavity, 5/8" ORB, 7/8" - 14

1шт.

26

304421A1

VALVE

Flow Regulator

1шт.

27

304418A1

SEAL KIT

Flow Regulator

1шт.
