Запчасти Case IH 1255 (35.359.BB[06]) - MULTI VALVE WITH PTO, WING 1 BREAKDOWN (35) - HYDRAULIC SYSTEMS

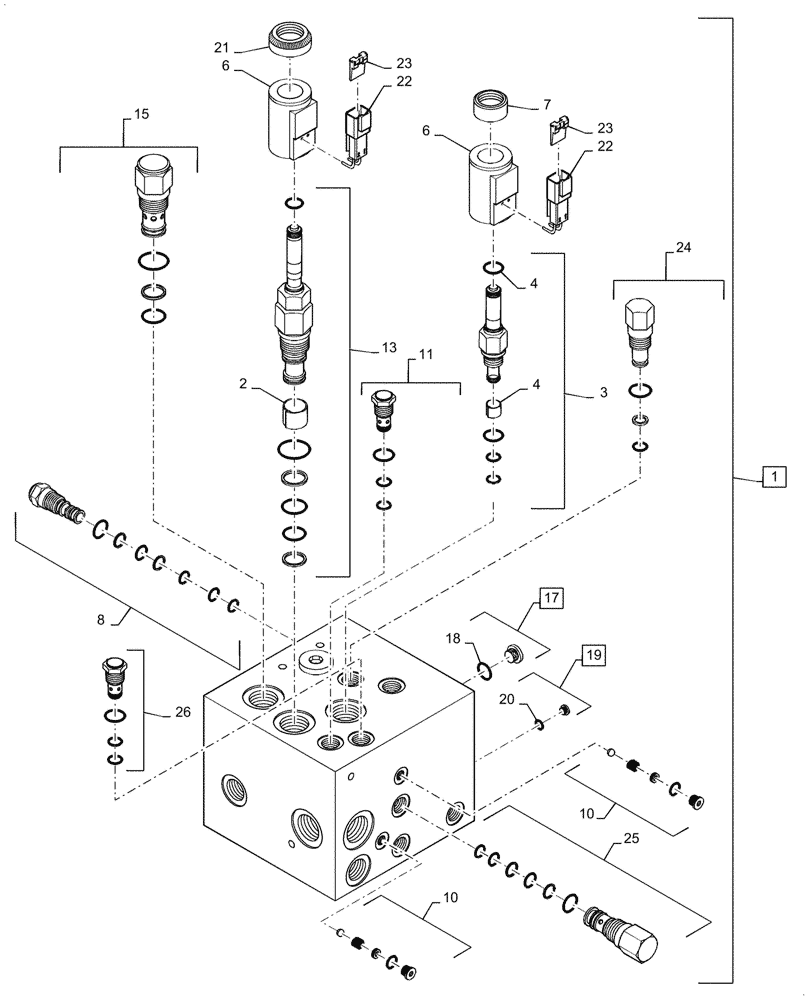

Схема запчастей Case IH 1255 - (35.359.BB[06]) - MULTI VALVE WITH PTO, WING 1 BREAKDOWN (35) - HYDRAULIC SYSTEMS
6
23
20
18
4
8
22
24
22
10
17
4
15
25
19
7
23
6
2
21
10
11
26
1
3
13

Артикул

Название

Примечание

Количество

1

84538087

VALVE

PTO Multi Valve, Incl 2 - 27

1шт.

2

324489A1

SCREEN

Proportional Valve

1шт.

3

254969A2

HYDRAULIC VALVE

Flow Control Cartridge

2шт.

4

1285892C1

FILTER SCREEN

2шт.

5

304494A1

SEAL KIT

Flow Control Valve

2шт.

6

243254A1

KIT

Solenoid

3шт.

7

440028A1

NUT

Coil Retaining

2шт.

8

278200A1

VALVE

Assy, Compensator

2шт.

9

S301087

SEAL KIT

Differential Pressure Compensator

2шт.

10

1341811C1

SPRING-CHECK

Sense

3шт.

11

86511474

CHECK VALVE

Coast

1шт.

12

86508168

SEAL KIT

Relief Valve

1шт.

13

304495A3

VALVE

Cartridge, Flow Control

1шт.

13

304495A3R

REMAN-HYD VALVE

1шт.

13

304495A3C

CORE-VALVE HYD

Return Number

1шт.

13

84537688R

REMAN-HYD VALVE

1шт.

13

84537688C

CORE-VALVE HYD

Return Number

1шт.

14

304499A1

SEAL KIT

Flow Control Cartridge

1шт.

15

335894A1

VALVE

Flow Limiter

1шт.

16

1288954C1

SEAL KIT

Flow Limiter

1шт.

17

9625178

PLUG,9/16" - 18 ORB

2шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

19

86632547

PLUG,Hex, 5/16"-24 ORB

1шт.

20

86010510

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

21

188106A1

NUT

Retaining

1шт.

22

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cab Plastic Receptacle 2C

1шт.

23

225318C1

ELEC CONNECTOR,2 Pin

W2P

1шт.

24

304419A1

VALVE PRESSURE RELIE

Assy

1шт.

25

304420A1

VALVE

Assy, Unloading Differential Pressure Sensing

1шт.

26

304421A1

VALVE

Flow Regulator

1шт.

27

304418A1

SEAL KIT

Flow Regulator

1шт.

Выбрано товаров: 31
