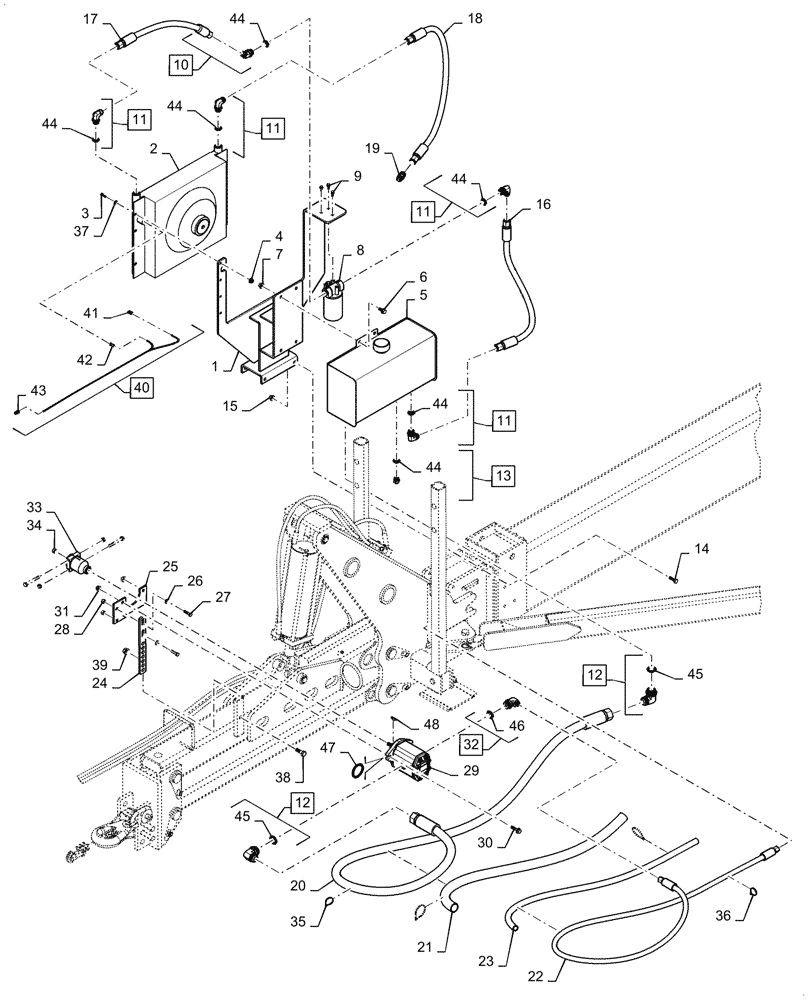

Запчасти Case IH 1255 (35.105.AA[01]) - PTO PRO PUMP 22 GPM FOR DRAW BAR HITCH (35) - HYDRAULIC SYSTEMS

1

84538173

MOUNT

Cooler Red

1шт.

2

87618983

COOLER ASSY.

Oil Pusher

1шт.

3

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

8шт.

4

86521605

FLANGE NUT,5/16"-18, Cl 5

8шт.

5

84526682

TANK

6.5 Gallon

1шт.

6

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

7

86521610

FLANGE NUT,Flg, 1/2"-13

4шт.

8

87404509

FILTER ASSY

Fan Drive

1шт.

9

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

3шт.

10

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 44

1шт.

11

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 44

4шт.

12

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

Incl 45

2шт.

13

86624009

HYD CONNECTOR,9/16"-18, 37 Degree x 1 1/16"-12, O-Ring

Incl 44

1шт.

14

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

15

86521607

FLANGE NUT,Flg, 1/2"-13, G5

4шт.

16

87590330

HYDRAULIC HOSE

from Fan Drive Filter to Tank (19 x 6050mm Long)

1шт.

17

87578858

HYDRAULIC HOSE

from Cooler Assy to Fan Drive Filter (19 x 6050mm Long)

1шт.

18

87590326

HYDRAULIC HOSE

from Oil Cooler to Multi Valve (19 x 615mm Long)

1шт.

19

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

20

87580858

HYDRAULIC HOSE,31.5mm ID x 3050mm L, SAE 100R4

from Fan Motor to Tank (31.5 x 3050mm Long)

1шт.

21

87458128

PROTECTIVE SLEEVE,64.5mm ID x 1117.6mm L

Protective Sleeve

1шт.

22

47452376

HOSE

from Fan Motor to Mounting Post (31.5 x 3500mm Long)

1шт.

23

87458127

SLEEVE

Protective Sleeve

1шт.

24

437631A1

BRACKET

Adjusting

1шт.

25

437630A1

PLATE

Pump Mounting

1шт.

26

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

4шт.

27

86050212

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

2шт.

28

86637736

NUT,7/16"-14, GB

2шт.

29

87619629

PUMP

Pro Drive PTO, Incl 48, 49

1шт.

29

87619629R

REMAN-HYD PUMP

1шт.

29

87619629C

CORE-HYDRAULIC PUMP

Return Number

1шт.

30

86521616

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

2шт.

31

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

32

87024324

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 5/16"-12, O-Ring

Incl 46

1шт.

33

1958268C1

COUPLING

1 3/4" Clamp Type

1шт.

34

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

35

291207C1

CLAMP

Cable Lock

8шт.

37

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

38

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

1шт.

39

86521608

FLANGE NUT,Flg, 5/8"-11, G5

1шт.

40

355955A1

HARNESS

Cyclo Cooling, Incl 41 - 43

1шт.

41

225295C1

ELEC CONNECTOR,Female, 3 Pin

Cooling Fan

1шт.

42

225316C1

ELEC CONNECTOR,Female, 2 Pin

Terminal Switch

1шт.

43

225315C1

ELEC CONNECTOR,Male, 2 Pin

Extra Power

1шт.

44

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

45

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

46

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

47

84391735

KIT

PTO Drive Pump

1шт.

48

280963

NUT,Nut, 1/2-20 GR 5 ZND

PTO Drive Pump

1шт.

48

47471

WOODRUFF KEY,#15, 1/4" x 1", HT

PTO Drive Pump

1шт.
