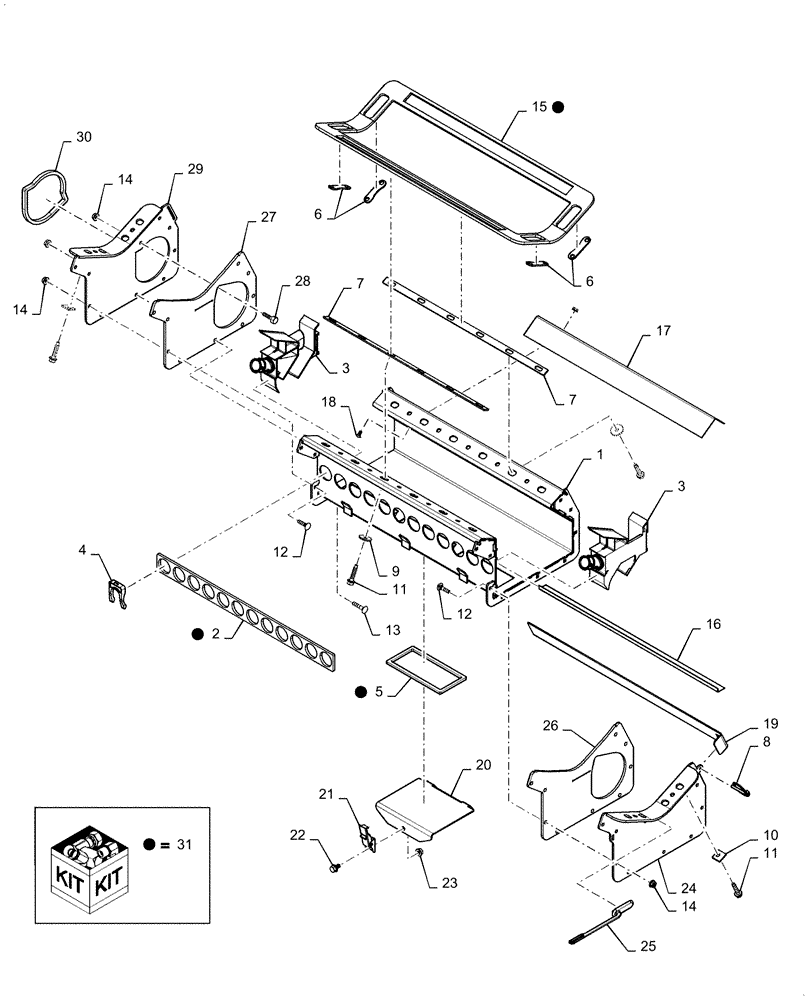

Запчасти Case IH 1255 (80.100.AC[05]) - DISTRIBUTOR, ASSY, 12 PORT RH (80) - CROP STORAGE/UNLOADING

1

84489712

DISTRIBUTOR

12 Port, Painted Red

1шт.

2

NSS

NOT SOLD SEPARAT

Gasket, 12 Port Segment, Incl in 30

1шт.

3

84580208

MANIFOLD

Inductor Segment

6шт.

4

84544326

CLIP

Inductor Segment

12шт.

5

NSS

NOT SOLD SEPARAT

Gasket, Short Seed Door, Incl in 30

1шт.

6

47497878

SUPPORT

End Place Spacer, Painted Red

4шт.

7

47497879

SUPPORT

12 Port Distribution, Painted Red

2шт.

8

87459046

LINCH PIN

1шт.

9

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

12шт.

10

47382493

MOUNTING PLATE

8шт.

11

84420728

BOLT

20шт.

12

86508769

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 5

16шт.

13

280687

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

2шт.

14

86624020

FLANGE NUT,Flg, 1/4"-20.G5

21шт.

15

NSS

NOT SOLD SEPARAT

Gasket, 12 Port Main, Incl in 30

1шт.

16

84489728

SCREEN

12 Port Lower

1шт.

17

84543871

SCREEN

12 Port Upper

1шт.

18

280700

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

2шт.

19

84469491

GRATE

Seed Shutoff, 12 Port, Painted Red

1шт.

20

84581148

PLATE

Short Door, Painted Red

3шт.

21

47525127

LATCH

Undercenter Double Lock

3шт.

22

86521551

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

3шт.

23

86521605

FLANGE NUT,5/16"-18, Cl 5

3шт.

24

84486988

WALL

LH, No Air, Painted Red

1шт.

25

47374749

PLUG

Seed Gate

1шт.

26

84540713

GASKET

LH, Endcap

1шт.

27

84540714

GASKET

RH, Endcap

1шт.

28

86511443

BOLT,Hex Serr, 1/4" - 20 x 1", 5SPL, Full Thd

1шт.

29

84486987

WALL

RH, Air, Painted Red

1шт.

30

84540715

GASKET

Air Intake

1шт.

31

84493588

KIT

Gasket 12 Port, Incl 2, 5, 15

1шт.
