(79.904.AI[04]) - IN CAB PDP COMPRESSOR HITCH MOUNT DIRECT DRIVE

Запчасти Case IH 1255 (79.904.AI[04]) - IN CAB PDP COMPRESSOR HITCH MOUNT DIRECT DRIVE (79) - PLANTING

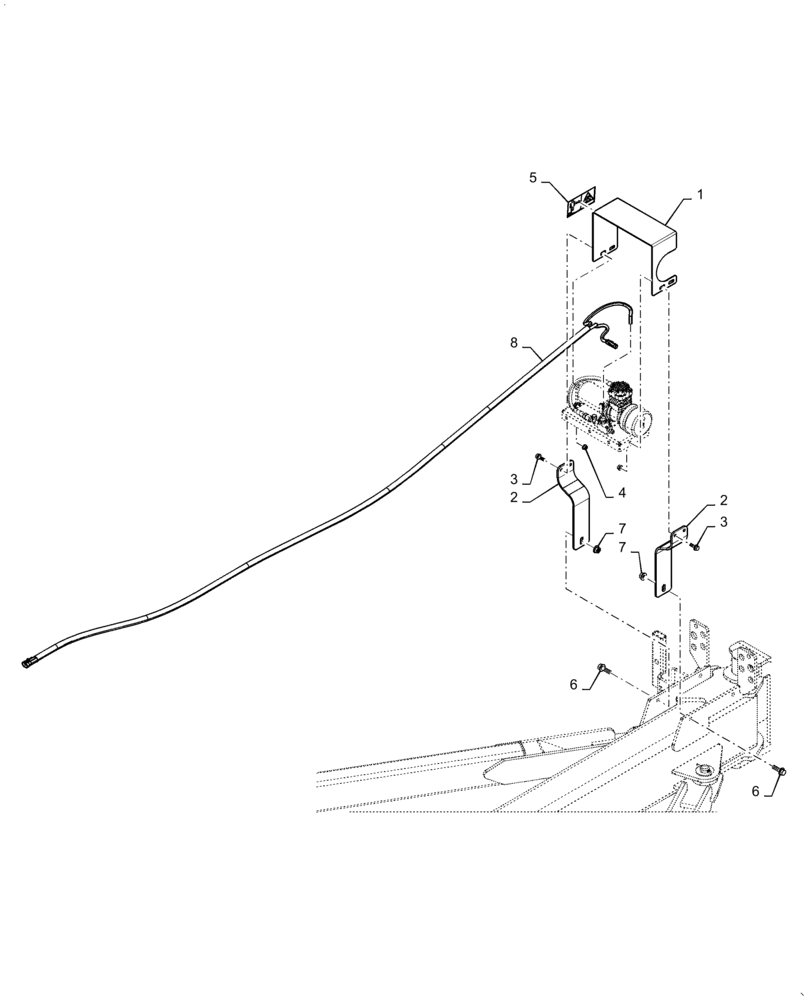

Схема запчастей Case IH 1255 - (79.904.AI[04]) - IN CAB PDP COMPRESSOR HITCH MOUNT DIRECT DRIVE (79) - PLANTING
3
6
4
6
7
8
2
5
3
1
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84293045

SHIELD

Compressor Painted

1шт.

2

87693591

BRACKET

Mount Painted Red

2шт.

3

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

4

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

5

47433223

DECAL

Presurized Hazard

1шт.

6

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

7

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

8

84170858

HARNESS

Compressor

1шт.
