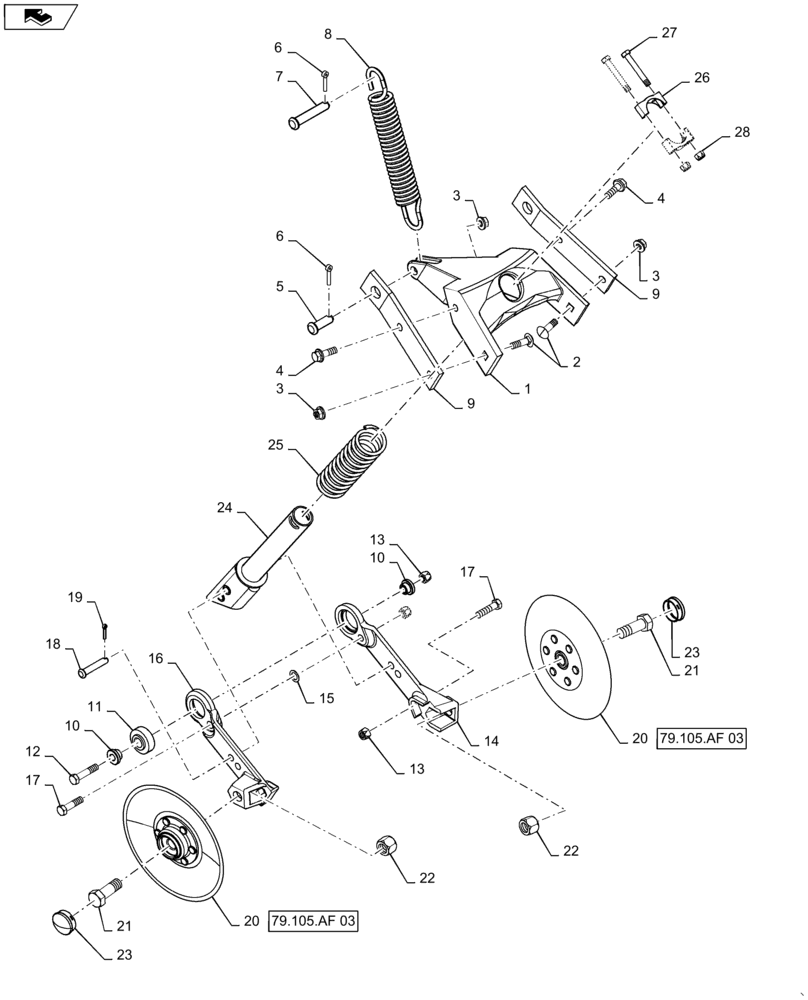

Запчасти Case IH 1255 (79.105.AF[04]) - ROW UNIT CLOSING WITH OUT PRESS WHEEL (79) - PLANTING

1

84372576

SUPPORT

Spring Anchor Painted

1шт.

2

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

2шт.

3

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

4

86512174

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/4"

2шт.

5

86624070

HEADED PIN,12.7mm OD x 38.1mm L

1шт.

6

87397

COTTER PIN,3/16" OD x 1" L

2шт.

7

86624072

HEADED PIN,12.7mm OD x 69.85mm L

1шт.

8

436715A1

SPRING

.244 WR 1.48 OD 9.8 LG

1шт.

9

86983614

ARM

Bar Press Wheel Replacment

2шт.

10

1279478C1

BUSHING,9.65mm ID x 24mm OD x 13mm L

Spacer

2шт.

11

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

1шт.

12

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

13

9637692

NUT,3/8"-16, Gr B

3шт.

14

436720A1

ARM

Closing Disc Pivot Long Painted Gray

1шт.

15

86624145

WASHER,0.47" ID x 0.75" OD x 0.03" Thk

1шт.

16

436721A1

ARM

Closing Disc Pivot Painted Gray

1шт.

17

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

18

86624080

HEADED PIN,9.53mm OD x 50.8mm L

1шт.

19

80756

COTTER PIN,1/8" x 3/4"

1шт.

20

1277891C91

DISC

Covering

2шт.

21

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

22

6395

LOCK NUT,5/8"-11, GB

2шт.

23

324180A1

BEARING CAP,35.2 mm OD x 7.62 mm

2шт.

24

84382932

TUBE

Spring Guide

1шт.

25

436733A1

COIL SPRING

.207WR 1.88 OD 6.3 LG

1шт.

26

84383008

COLLAR

Spring Guide

2шт.

27

86505972

BOLT,5/16" - 18 x 2 - 1/4", Gr 5

2шт.

28

86629544

NUT,5/16” – 18, GR B

2шт.
