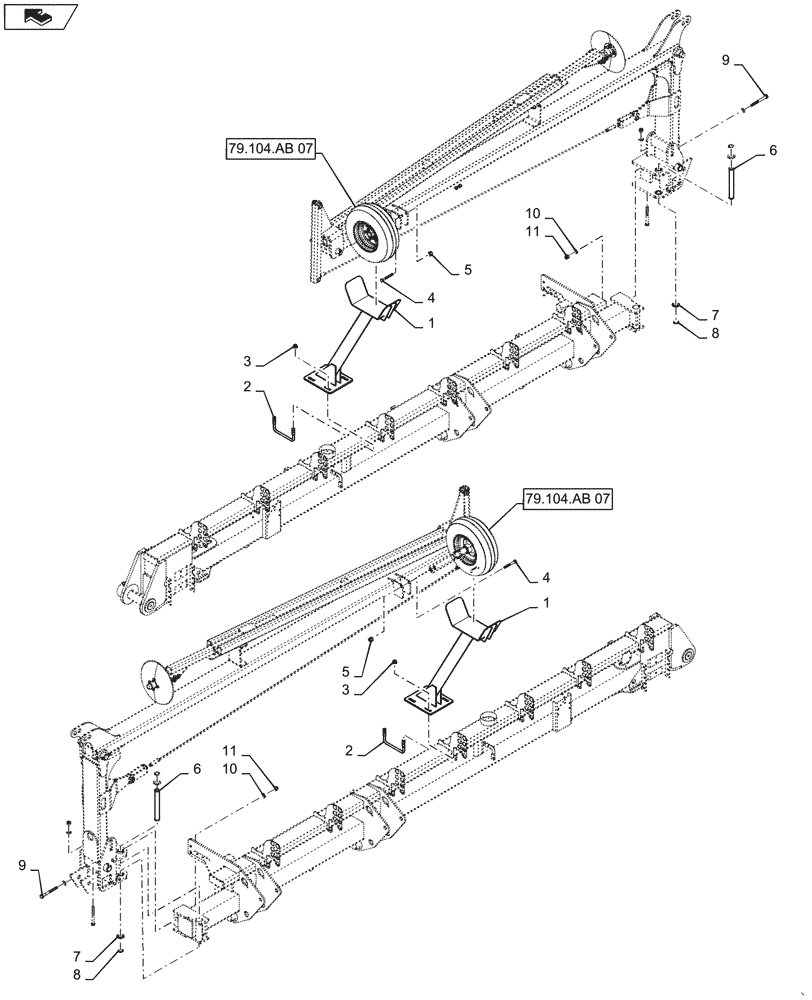

Запчасти Case IH 1255 (79.104.AA[01]) - MARKER MOUNTING FOR 24 ROW (79) - PLANTING

1

84534121

BRACKET

Tire Support

2шт.

2

142583A1

U-BOLT

.625 "

4шт.

3

86521608

FLANGE NUT,Flg, 5/8"-11, G5

8шт.

4

280852

BOLT,Hex, 5/8" - 11 x 5", Gr 8

4шт.

5

85700693

NUT,5/8" - 11, Gr C

4шт.

6

87659641

PIN

Marker Breakaway

2шт.

7

86632586

WASHER,1.53" ID x 2.5" OD x 0.11" Thk

4шт.

8

86632531

SNAP RING,#150, Ext

4шт.

9

84009

BOLT

.625 x 6.00 Gr 5

4шт.

10

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

8шт.

11

19670

NUT,5/8"-11, GB

4шт.
