Запчасти Case IH 1255 (63.906.AB[02]) - LIQUID FERTILIZER RIGHT COUPLER (63) - CHEMICAL APPLICATORS

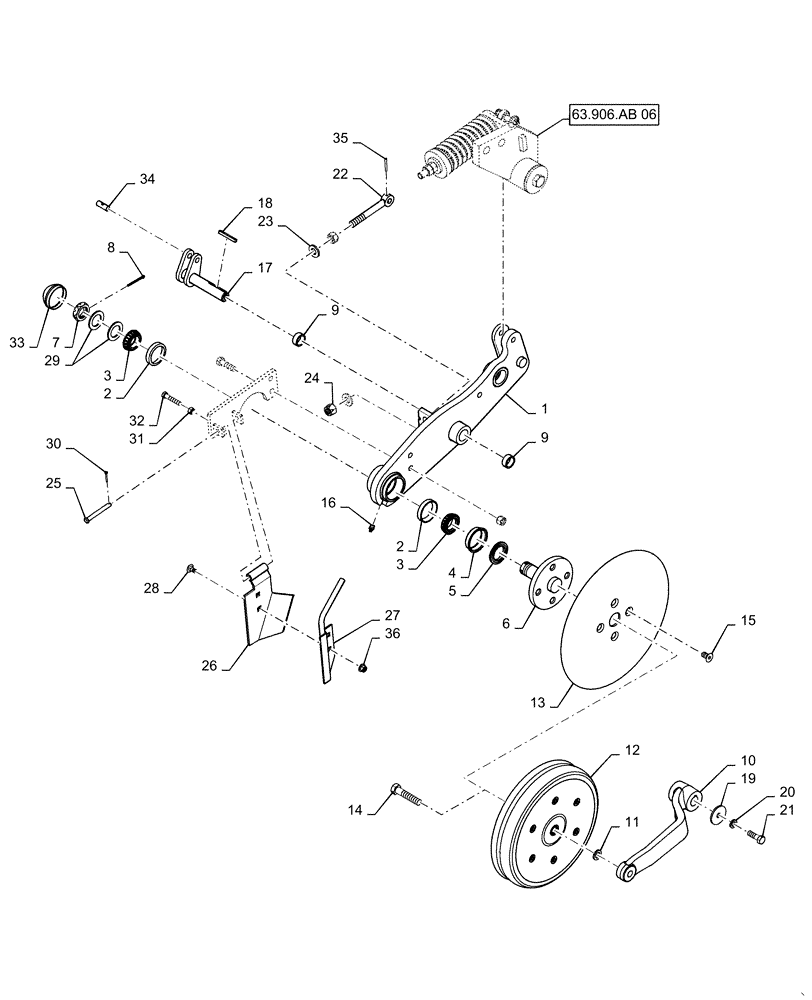

Схема запчастей Case IH 1255 - (63.906.AB[02]) - LIQUID FERTILIZER RIGHT COUPLER (63) - CHEMICAL APPLICATORS
63.906.ab 06
33
22
30
34
16
18
17
31
20
2
15
32
5
8
29
9
9
4
21
6
26
23
13
11
24
3
19
35
12
28
36
25
1
27
14
3
2
7
10

Артикул

Название

Примечание

Количество

1

87677730

ARM

Coulter Right

1шт.

2

651817R1

BEARING CUP

Coulter

2шт.

2

651817R1GV

BEARING CUP

Value

2шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

2шт.

4

472222R1

SLEEVE

Wear

1шт.

5

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

Oil

1шт.

6

84224620

SPINDLE

Coulter

1шт.

7

519250R1

SLOTTED NUT

Hex 1- 1/4"

1шт.

8

86523955

COTTER PIN,1/8" x 2"

1шт.

9

87584013

BEARING LINER,25.634 mm ID x 31.87 mm OD x 12.7 mm

2шт.

10

87628254

ARM

Right

1шт.

11

87023159

WASHER,0.64" ID x 1.05" OD x 0.13" Thk

1шт.

12

87628246

WHEEL

2 x 13 Offset

1шт.

13

87584040

BLADE

381mm x 5mm Thick

1шт.

14

87023126

BOLT,Hex, 5/8" - 11 x 3", LH Thread, Gr 5

1шт.

15

87010473

HEX SOC SCREW,FLAT, 1/2" - 13 x 7/8"

1/2"

4шт.

16

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

17

87584022

PIN

Gauge Wheel

1шт.

18

87599601

KEY

1/4 x 2.25"

1шт.

19

86625245

WASHER,0.52" ID x 2" OD x 0.16" Thk

1шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

21

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

22

87584046

EYEBOLT

Threaded

1шт.

23

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

2шт.

24

85700693

NUT,5/8" - 11, Gr C

1шт.

25

86632570

HEADED PIN

.375 x 3.250 Gr 5

1шт.

26

84423068

SCRAPER BLADE

Right Painted Black

1шт.

27

84421408

BRACKET

Right Painted

1шт.

28

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

29

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

2шт.

30

80755

COTTER PIN,1/8" OD x 1" L

1шт.

31

9628503

NUT,3/8"-16, G5

1шт.

32

80280644

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

1шт.

33

87505175

DUST CAP

Hub

1шт.

34

87584047

PIN

Depth Adjust

1шт.

35

87742350

ROLL PIN

Coiled

1шт.

36

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.
