(63.100.AF[05]) - LIQUID FERTILIZER TANK OVERFLOW WITH BULK TANK FOR 24 ROW

Запчасти Case IH 1255 (63.100.AF[05]) - LIQUID FERTILIZER TANK OVERFLOW WITH BULK TANK FOR 24 ROW (63) - CHEMICAL APPLICATORS

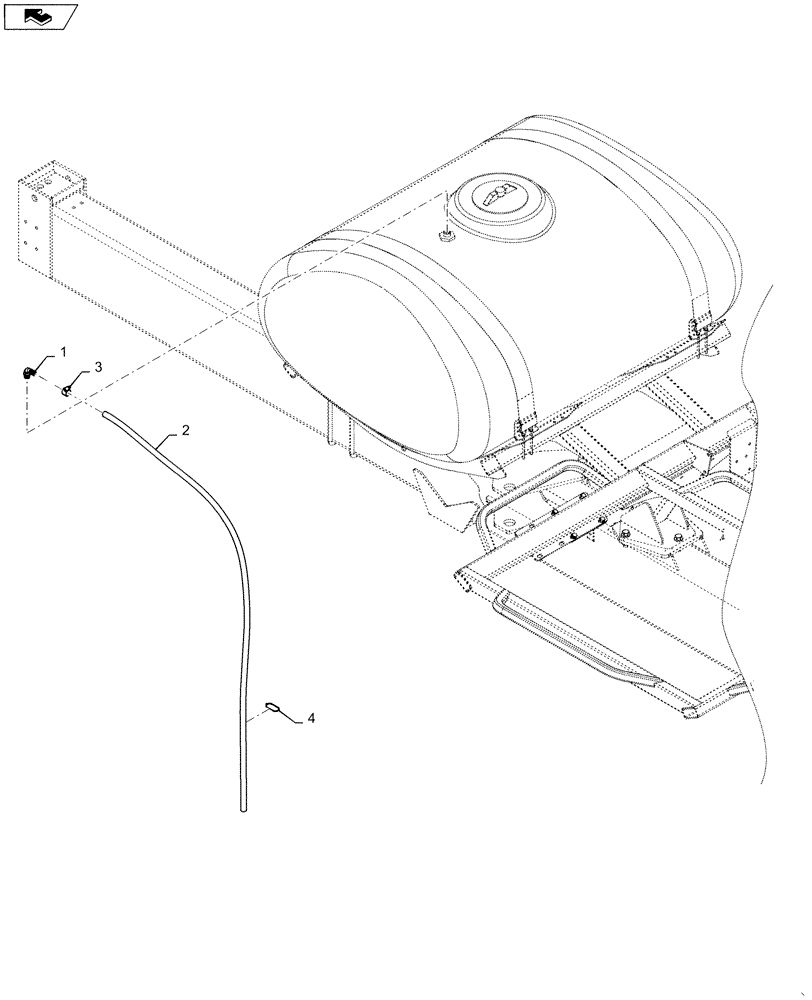

Схема запчастей Case IH 1255 - (63.100.AF[05]) - LIQUID FERTILIZER TANK OVERFLOW WITH BULK TANK FOR 24 ROW (63) - CHEMICAL APPLICATORS
2
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

405778A1

ELBOW

Tank

1шт.

2

241923A1

HOSE

100' Bulk Roll, Cut to Length 2500 mm

1шт.

3

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

1шт.

4

87502038

CABLE TIE

Small

4шт.
