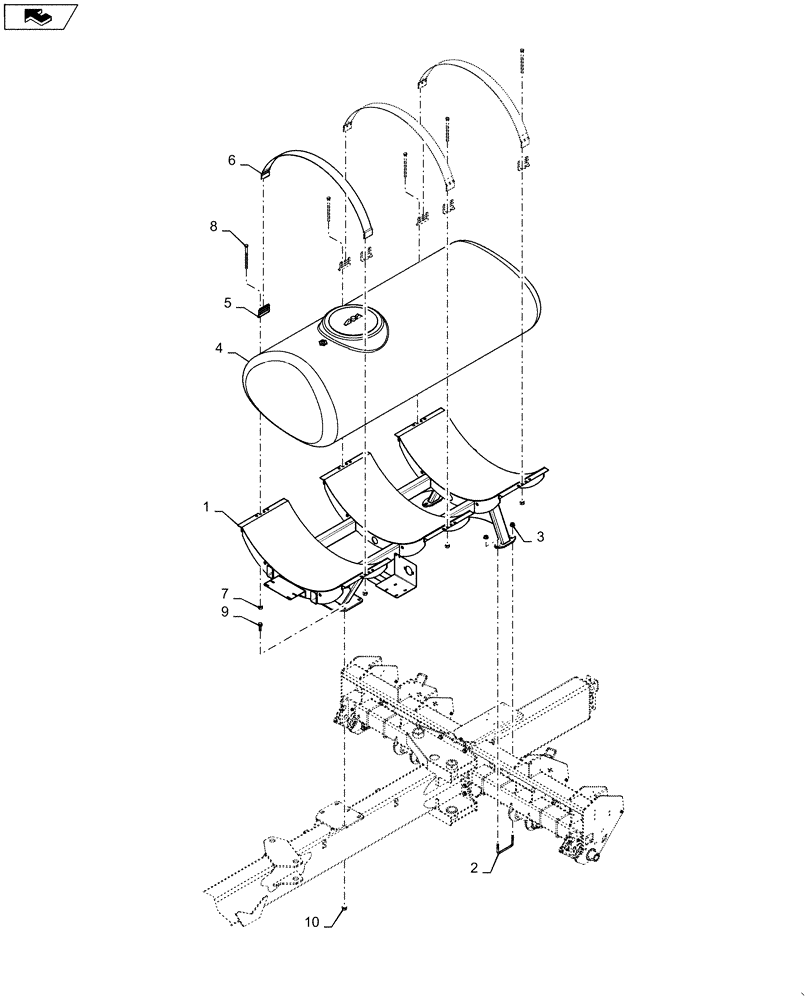

Запчасти Case IH 1255 (63.100.AF[01]) - LIQUID FERTILIZER TANK AND FRAME FOR 24 ROW (63) - CHEMICAL APPLICATORS

1

47444490

FRAME

600 Gallon Fertilizer

1шт.

2

142583A1

U-BOLT

.625 x 7.0"

2шт.

3

86521608

FLANGE NUT,Flg, 5/8"-11, G5

4шт.

4

87607560

TANK

600 Gallon

1шт.

5

87647049

PLATE

Strap Anchor

6шт.

6

87660684

STRAP

Fertilizer Tank

3шт.

7

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

12шт.

8

87657981

BOLT

.375 x 5.00 Gr 5

12шт.

9

86637940

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

4шт.

10

84490435

FLANGE NUT

3/4 Gr 8

4шт.
