Запчасти Case IH 1255 (61.901.AI[05]) - SEED METER, CHAIN DRIVEN SHAFT, OUTER RIGHT FOR 24 ROW (61) - METERING SYSTEM

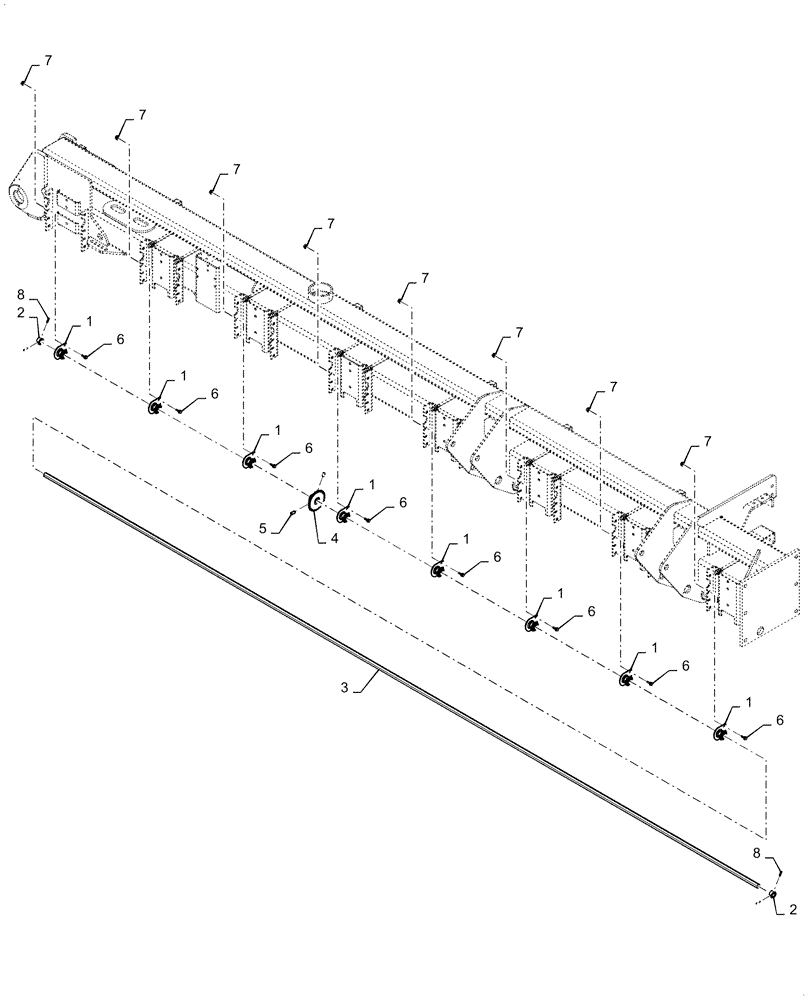

Схема запчастей Case IH 1255 - (61.901.AI[05]) - SEED METER, CHAIN DRIVEN SHAFT, OUTER RIGHT FOR 24 ROW (61) - METERING SYSTEM
1
6
5
7
4
6
2
7
3
6
8
6
1
2
1
6
7
1
1
7
7
6
8
7
1
7
1
6
7
1
6

Артикул

Название

Примечание

Количество

1

413712A1

BEARING ASSY,1.90625" OD x 1.875"

with Sprocket 12 Teeth

8шт.

2

22224

COLLAR

Lock 7/8 Hex Bore

2шт.

3

87462825

SHAFT

Transmission Input 7/8 Hex

1шт.

4

87503169

SPROCKET

50 Chain 24 Teeth

1шт.

Used for Hydraulic Driven Units

1шт.

5

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

6

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

16шт.

7

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

16шт.

8

84523394

KEYWAY

Set Screw 1/4 - 28 x 3/8 Cup

4шт.

Выбрано товаров: 9
