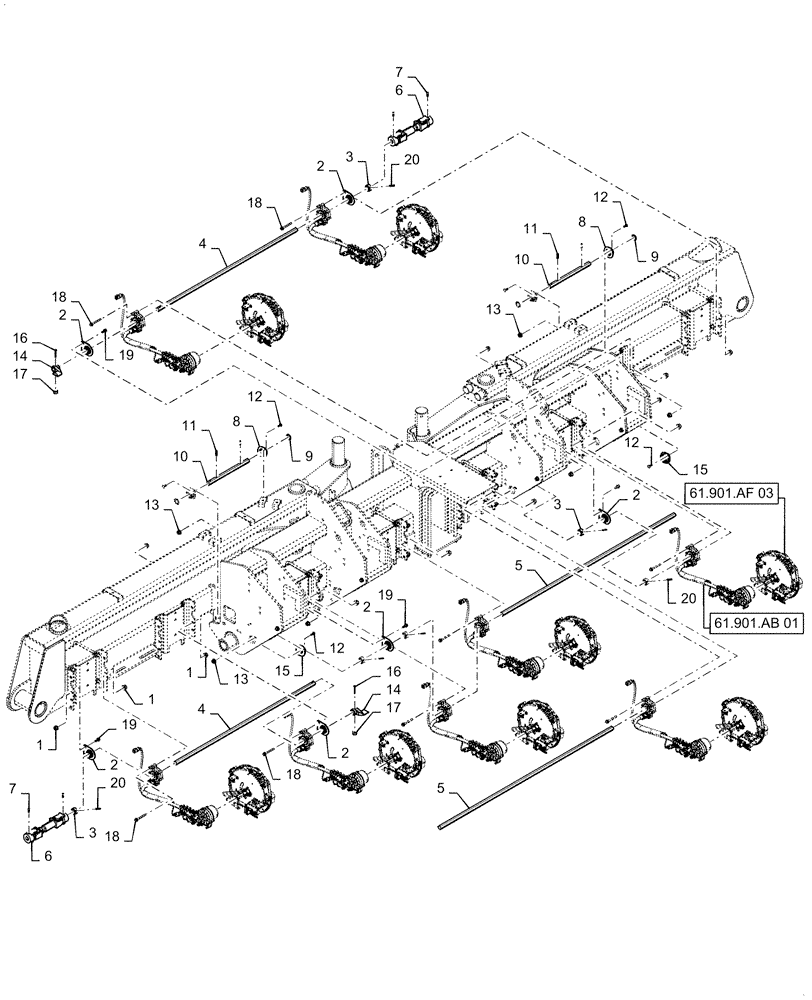

Запчасти Case IH 1255 (61.901.AF[03]) - SEED METER, CABLE DRIVEN SHAFT, CENTER FOR 24 ROW (61) - METERING SYSTEM

1

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

24шт.

2

102724A2

BALL BEARING,22.6mm ID

Hex Bore

6шт.

3

22224

COLLAR

Lock 7/8 Hex Bore

6шт.

4

87462835

SHAFT

Transmission Input 7/8 Hex

2шт.

5

87462834

SHAFT

Transmission Input 7/8 Hex

2шт.

6

87444140

DRIVE SHAFT

Coupling Telescoping

2шт.

7

87035712

SET SCREW,Hex Skt, 3/8" - 16 x 5/8"

4шт.

8

87566583

FLANGED BEARING,22.25mm ID

4шт.

9

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

4шт.

10

87557041

SHAFT

Hex, Cross Over

2шт.

11

763441

PIN,1/4" x 1 1/4", Coiled

4шт.

12

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

12шт.

13

86521605

FLANGE NUT,5/16"-18, Cl 5

12шт.

14

87539852

COUPLING

Cross Over Drive

2шт.

15

134158C92

BALL BEARING,22.5mm ID

2шт.

16

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

17

20356

NUT,1/4"-20, GB

2шт.

18

84553071

FLANGE BOLT

3/8 x 3 Gr 5

16шт.

19

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

20

84523394

KEYWAY

Set Screw 1/4 - 28 x 3/8 Cup

12шт.
