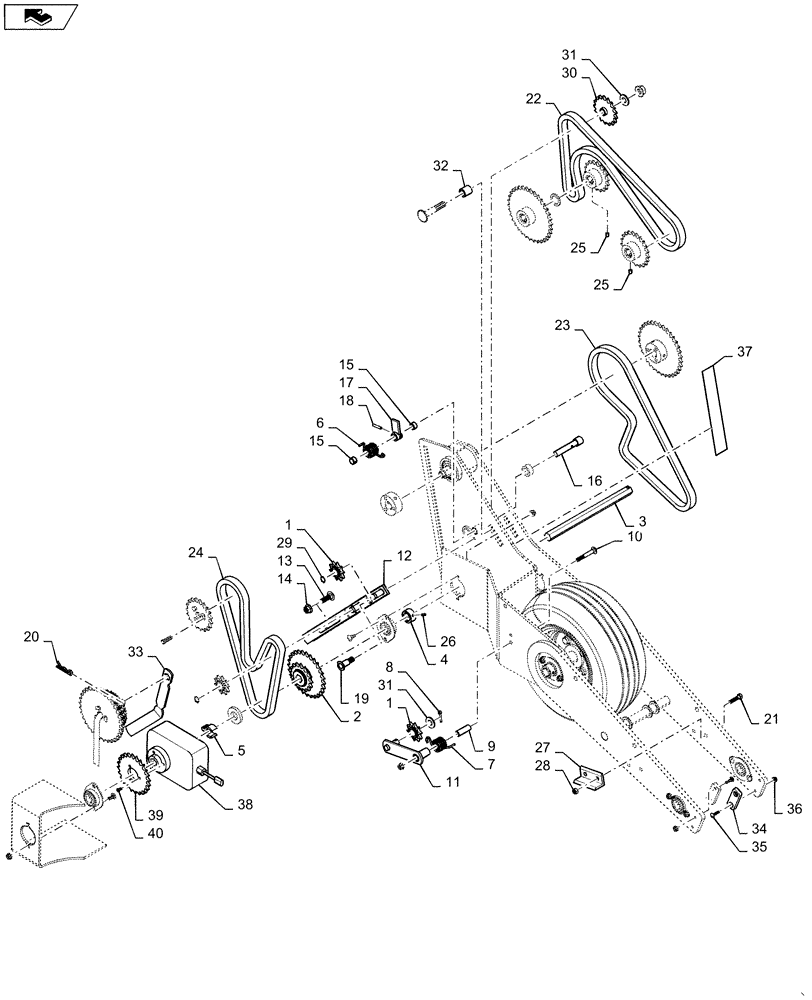

Запчасти Case IH 1255 (61.901.AA[03]) - TRANSMISSION MECHANICAL DRIVE FOR 24 ROW CONTINUED (61) - METERING SYSTEM

1

87536428

SPROCKET

15 x 10 Idler

6шт.

2

87631085

SPROCKET

Range Selector

1шт.

3

87722130

SHAFT

Hex

1шт.

4

22224

COLLAR

Lock 7/ 8 Hex

2шт.

5

87627709

SPACER

Hex Sprocket

1шт.

6

87637812

TENSIONER

Chain

1шт.

7

87627065

TORSION SPRING

Idler

2шт.

8

87397

COTTER PIN,3/16" OD x 1" L

1шт.

9

87637813

SLEEVE

Tensioner Pivot

1шт.

10

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

1шт.

11

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

12

87707971

ARM

Torsion Idler

1шт.

13

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

1шт.

14

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

15

8128

BUSHING

.75 x .624 x .5

2шт.

16

87630935

IDLER

Left

1шт.

17

84214688

LOCK

Idler

1шт.

18

438-11622

LOCK PIN,1/4" x 1 3/8", Slotted

1шт.

19

87630934

PIN

Idler Bar Hanger

1шт.

20

136-163

HAIR PIN COTTER,Int, 5/16" x .177

1шт.

21

86977691

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

4шт.

22

84393498

CHAIN

Seed Drive, 98 Links, 61.25 Length

1шт.

23

84393499

CHAIN

Seed Drive, 84 Links, 52.5 Length

1шт.

24

84393497

CHAIN

Seed Drive, 82 Links, 51.25 Length

1шт.

25

483-1318

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

7шт.

26

84-1256

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

4шт.

27

87649309

STOP

Transmission Bottom

2шт.

28

280136

NUT,3/8"-16, G8

4шт.

29

103-1162

SNAP RING,#62, Ext

4шт.

30

298009A1

DRIVE SPROCKET

Main

1шт.

31

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

32

87671810

SPACER

Rear Frame

1шт.

33

87629554

ADJUSTING TOOL

Tension

1шт.

34

87722064

WEAR PAD

2шт.

35

280826

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

4шт.

36

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

37

87716619

DECAL

Transmission Operation

1шт.

38

87632130

ELECTRIC CLUTCH

1шт.

38

87632130R

REMAN-CLUTCH KIT

1шт.

38

87632130C

CORE-CLUTCH KIT

Return Number

1шт.

39

87620324

SPROCKET

24 Tooth Clutch

1шт.

40

88769

HEX SOC SCREW,BTN HD, 1/4" - 20 x 1/2"

3шт.
