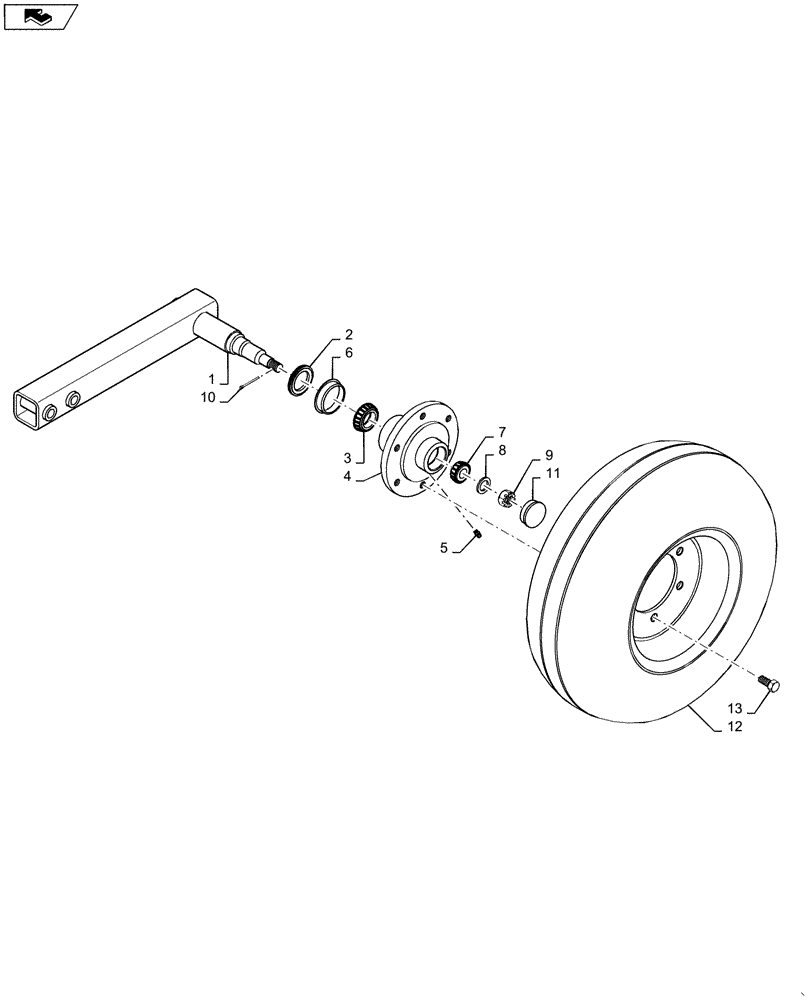

Запчасти Case IH 1255 (44.901.AD[03]) - MARKER WHEEL FOR 24 ROW (44) - WHEELS

1

87663796

FRAME

Marker Wheel, Painted Red

1шт.

2

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

Oil

1шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

4

427737A1

HUB

6 Bolt, Painted Red

1шт.

5

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

6

472222R1

SLEEVE

Wear

1шт.

7

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

1шт.

7

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

8

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

8шт.

9

129-80

SLOTTED NUT,3/4"-16, G2

1шт.

10

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

11

B13280

HUB CAP

Wheel

1шт.

12

10008260

LAND WHEEL

20.5 - 8.00 x 10

1шт.

13

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

Wheel

6шт.
