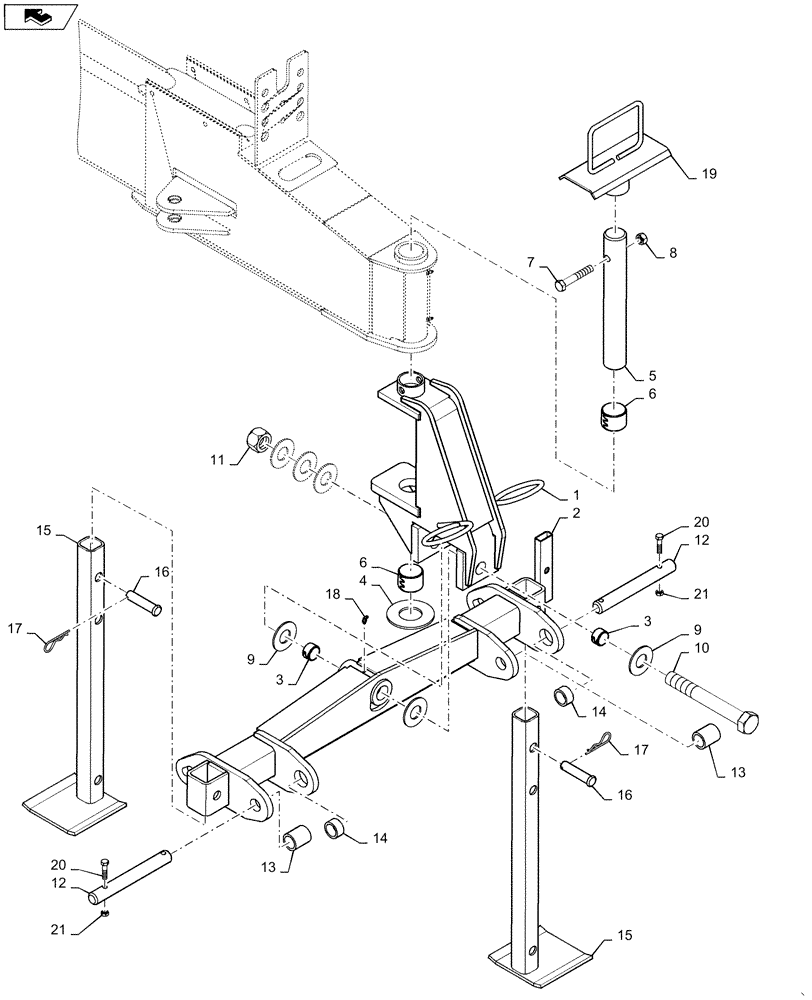

Запчасти Case IH 1255 (39.110.AB[03]) - HITCH 2 POINT FOR 24 ROW (39) - FRAMES AND BALLASTING

1

87548608

KNUCKLE

W/ Semi Mount Hitch

1шт.

2

84484096

TUBE

W/ Hitch Cross

1шт.

3

22093

BUSHING,1-1/2" ID x 1-3/4" OD x 1" Thk

2шт.

4

87505768

PAD

Wear

1шт.

5

87505769

PIN

Mount Hitch Vertical

1шт.

6

21981

BUSHING,63.5mm ID x 69.85mm OD x 50.8mm L

2шт.

7

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

1шт.

8

86754

NUT,3/4"-10, GB

1шт.

9

87371

WASHER,1.62" ID x 3.5" OD x 0.18" Thk

6шт.

10

87358257

BOLT

1.50 x 12.00 Gr 8

1шт.

11

87020431

LOCK NUT

1-1/2

1шт.

12

87566119

PIN

Lower 3 Point

2шт.

13

599801R1

SPACER

Hitch Pin

2шт.

14

284219A1

SPACER

Hitch Pin

2шт.

15

87549566

STAND

Planter

2шт.

16

87403990

HEADED PIN

1.00 x 4.28

2шт.

17

1978738C1

HAIR PIN COTTER

2шт.

18

80718

LUBE NIPPLE,1/4"-28 x 90 Degree

1шт.

19

84211239

MOUNT

Hitch Pin

1шт.

20

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

21

86632537

THIN NUT,1/2"-13, GB, Thin

4шт.
